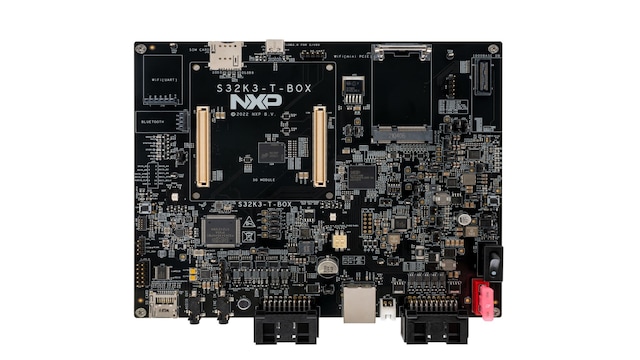

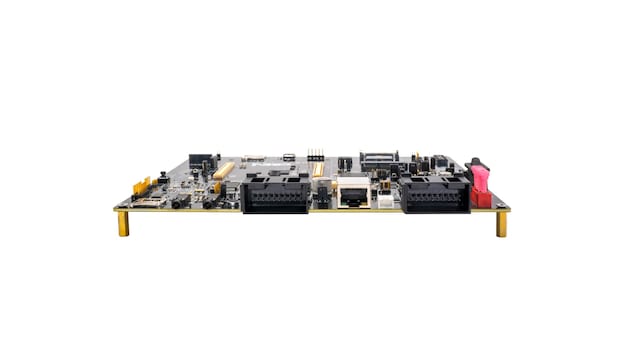

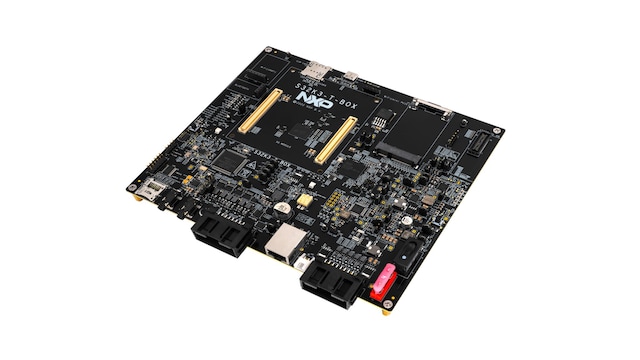

S32K3 Automotive Telematics Box (T-Box) Reference Design Board

S32K3-T-BOX

Roll over image to zoom in

The S32K3 Automotive Telematics Box (T-BOX) is a compact, highly-optimized reference design board engineered to develop cost-effective vehicle networking and telematics applications.

Based on the S32K344 MCU with lockstep Arm® Cortex®-M7, the S32K3-T-BOX provides a reference for automotive applications such as 5G telematics box plus gateway and automotive Ethernet AVB with remote diagnostic, low-predictable latency, TSN Ethernet support and a wealth of communication interfaces (CAN FD/LIN/Ethernet/SJA1110). It can be directly used by carmakers, suppliers and software ecosystem partners to accelerate the development and shorten time-to-market.

Block Diagram

Choose a diagram:

S32K3 Telematics Box (T-Box) Reference Design Board

S32K3 Automotive Telematics Box (T-Box) Block Diagram

S32K3 Family Overview

S32K3 Family Overview
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

Interfaces

Automotive Ethernet Switches and Network Controllers

  • SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

Automotive LIN Solutions

  • TJA1124: Quad LIN Commander Transceiver for In-Vehicle Subnetworks

CAN with Flexible Data Rate

  • TJA144x: Automotive CAN FD Transceiver Family

CAN Signal Improvement

  • TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode
  • TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode

Secure CAN Transceivers

  • TJA1153: Secure HS-CAN Transceiver with Sleep Mode

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems
  • FS5600: Automotive Dual Buck Regulator and Controller with Voltage Monitors and Watchdog Timer

5 V PMIC Solutions

  • PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level

Sensors

Accelerometers

  • FXLS8967AF: ±2g/±4g/±8g/±16g, Low Power 12-bit Digital Accelerometer

Audio

Audio Converters

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • AW690: Wi-Fi® 6 1x1 Concurrent Dual Wi-Fi (CDW) and Bluetooth® 5.3 Combo SoC

Features

Applications

  • Supports automotive 5G telematics applications
  • Supports over-the-air (OTA)
  • Supports cost-effective service-oriented gateway and domain controller applications
  • Supports audio video bridging (AVB), featuring two clock generators to output precise clock reference
  • Optional 5G  and Wi-Fi 6 modules to allow for accessible remote OTA capabilities​

Networking

  • Multiple network interfaces, featuring seven Ethernet, six CAN/CAN FD and four LIN ports
  • Rich set of time-sensitive networking (TSN) standards
  • NXP original AVB and AUTOSAR® software

Safety and Security

  • ISO 26262 support – up to ASIL D

Software

  • The S32K3-T-BOX is loaded with the lightweight IP (lwIP) example firmware by default

Buy Options

S32K3-T-BOX-Image

Click to expand

S32K3-T-BOX
Active

S32K3-T-BOX Reference Design Board.

    $550.00 USD
    In Stock :3

    Normally ships 1-2 business days

    ADD TO CART
