NFC Wireless Charging Transmitter Front-End

Block Diagram

CTN530 Wireless Charging Transmitter

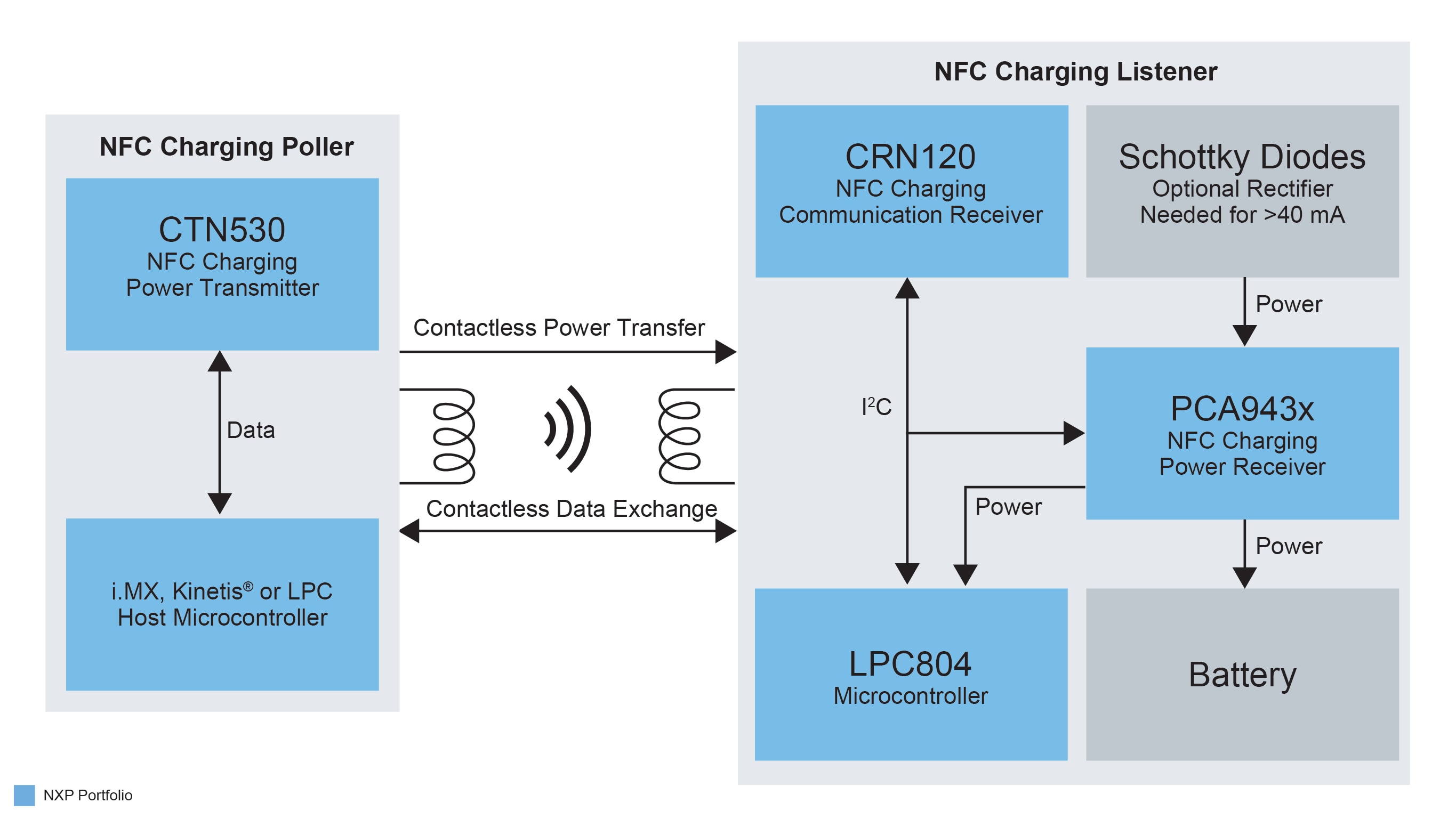

CTN530 Block Diagram

Features

Power

  • Up to 350mA, supporting up to 1.75W

Battery Life

  • Supply voltage: 2.5 to 5.5 V
  • Power-save modes: hard power-down, standby
  • Supporting low-power device discovery (LPCD)

Multiple interfaces to support a broad range of microcontrollers

  • Host interfaces: SPI, I2C, UART
  • Up to 8 GPOs

Documentation

Quick reference to our documentation types.

1 documents

Software

Quick reference to our software types.

Engineering Services

1 engineering service

To find additional partner offerings that support this product, visit our Partner Marketplace.
