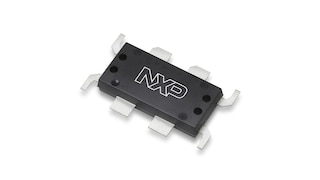

This A5G26H605W19N 85 W asymmetrical Doherty RF power GaN transistor is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2496 to 2690 MHz.

This part is characterized and performance is guaranteed for applications operating in the 2496 to 2690 MHz band. There is no guarantee of performance when this part is used in applications designed outside of these frequencies.

Data Sheet

Application Notes

Product Details

Features

High terminal impedances for optimal broadband performance
Advanced high performance in-package Doherty
Improved linearized error vector magnitude with next generation signal
Able to withstand extremely high output VSWR and broadband operating conditions
Plastic package
RoHS compliant

RF Performance Table

2600 MHz

Typical Doherty Single−Carrier W−CDMA Reference Circuit Performance: V_DD = 48 Vdc, I_DQA = 300 mA, V_GSB = –5.4 Vdc, P_out = 85 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.⁽¹⁾

Frequency	G_ps (dB)	η_D (%)	Output PAR (dB)	ACPR (dBc)
2620 MHz	15.1	52.5	8.4	–30.0
2655 MHz	15.3	52.3	8.2	–31.0
2690 MHz	15.0	52.1	8.1	–32.0

1. All data measured with device soldered to NXP reference circuit.

Buy/Parametrics

Part Show description	Order	CAD Model	Status	Frequency (Min) (MHz)	Frequency (Max) (MHz)	Supply Voltage (Typ) (V)	Peak Power (Typ) (dBm)	Peak Power (Typ) (W)	Die Technology
A5G26H605W19N Data Sheet			Active	2496	2690	48	57.95	624	GaN
