5 GHz-7 GHz Wi-Fi® 6E Front-End IC
- This page contains information on a product that is not recommended for new designs.

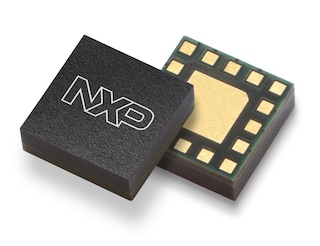

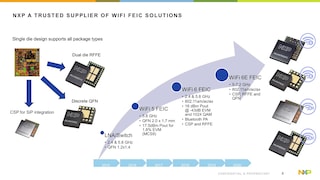

The WLAN7207C is a WLAN 5 GHz - 7 GHz RF front-end IC in a 2 mm x 2 mm HWFLGA16 package.
The WLAN7207C is designed for Wi-Fi 6E applications. It includes a power amplifier with directional coupler, a low noise receive amplifier (LNA) and a single pole double throw (SPDT) switch. The WLAN7207C also includes coexistence filters for both transmit and receive channels.
The device is matched to 50 Ω and integrates harmonic and out of band filtering which minimizes the layout area in the application.
For additional information contact your local NXP® Sales Office or NXP Authorized Distributor.
Product Details
Features
- Fully integrated Wi-Fi 6E RF front-end IC with high linearity and low-power modes
- Full band 5.150 GHz to 7.125 GHz
- High-power efficiency
- Integrated RF decoupling capacitors for all VCC and control pins
- Requires no external matching components, DC free RF ports except for the antenna port (on-chip ESD coil)
- 3 TX operation modes per band, enabling flexibility for power efficiency adaptation
- 2 RX operation modes enabling gain step between LNA mode and Bypass mode
- IO levels supporting 1.2 V and 1.8 V logic interface up to 2.1 V of max input level
-
ESD protection on all pins
- Human Body Model (HBM) according to ANSI/ESDA/JEDEC standard JS-001 exceeds 2 kV
- Charged Device Model (CDM) according to ANSI/ESDA/JEDEC standard JS-002 exceeds 500 V
- RoHS compliant
- Wi-Fi 6E support
- Smartphones, tablets, netbooks, and other portable computing devices
- Module applications for embedded systems
