2.4 GHz Wi-Fi® 6 Front-End IC
- This page contains information on a product that is not recommended for new designs.

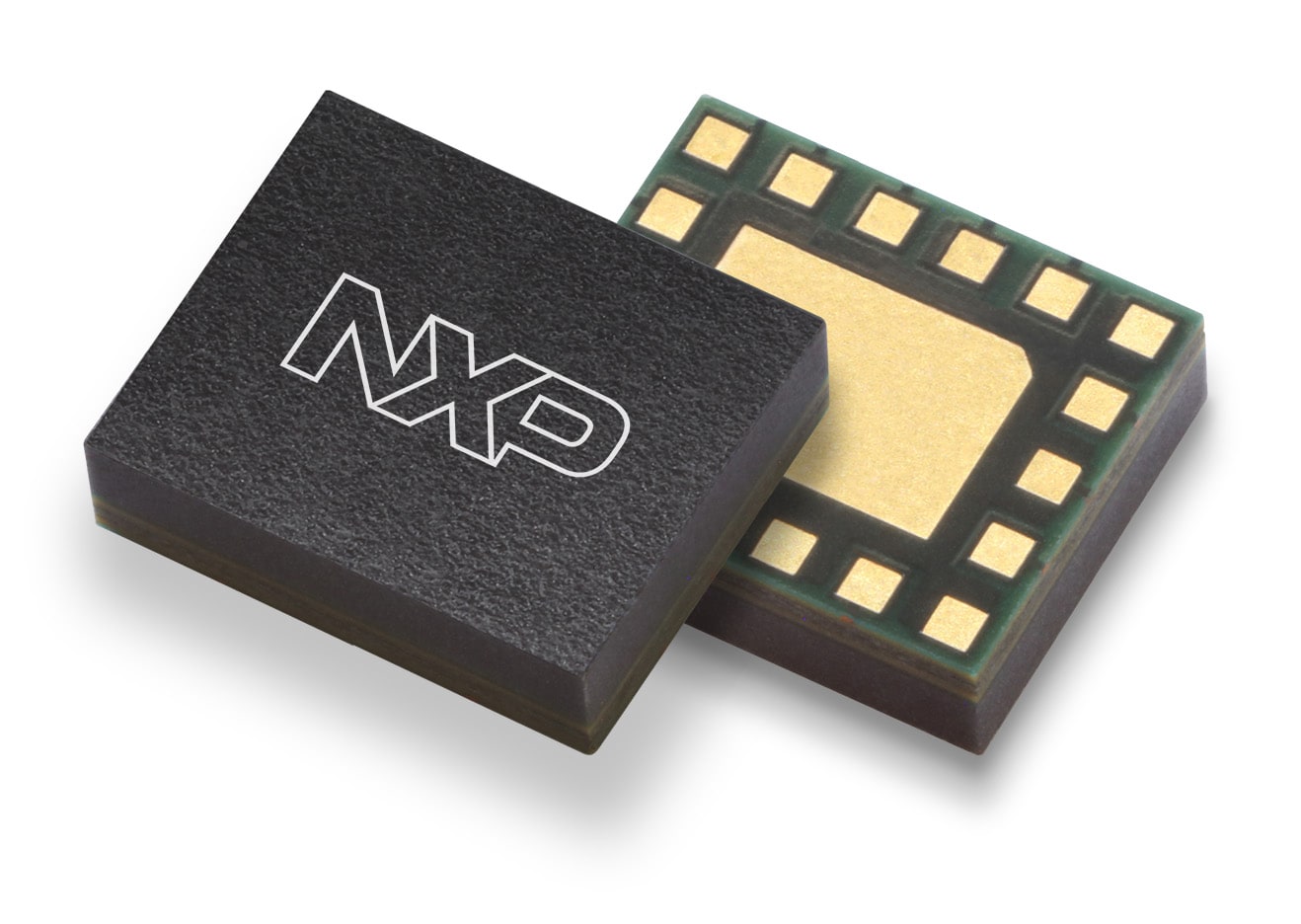

The WLAN7207H is a WLAN 2.4 GHz RF front-end IC in a 2.4 mm x 2.0 mm HFCPLGA18 package.
The WLAN7207H device is designed for Wi-Fi 6 applications.
It includes a transmit amplifier with directional coupler, a low-noise receive amplifier and a transmit/receive switch with a Bluetooth channel. The power amplifier supports 3 different TX gain modes to improve power efficiency.
The device is fully matched to 50 Ω and integrates harmonic and out of band filtering which minimizes the external component count.
For additional information contact your local NXP® Sales Office or NXP Authorized Distributor.
Product Details
Features
- Fully integrated 2.4 GHz Wi-Fi 6 FEIC with high linearity and low-power modes
- High-power efficiency
- Requires no external matching components
- AC coupled RF ports except for the ANT port, and BT port (on-chip ESD coil)
- 3 TX operation modes enabling flexibility for power efficiency adaptation
- Integrated BT PA
- Integrated directional coupler
-
ESD protection on all pins
- Human Body Model (HBM) according to ANSI/ESDA/JEDEC standard JS-001 exceeds 2 kV
- Charged Device Model (CDM) according to ANSI/ESDA/JEDEC standard JS-002 exceeds 500 V
- RoHS compliant
- Wi-Fi 6 support
- Smartphones, tablets, netbooks, and other portable computing devices
- Module applications for embedded systems
