- No Longer Manufactured

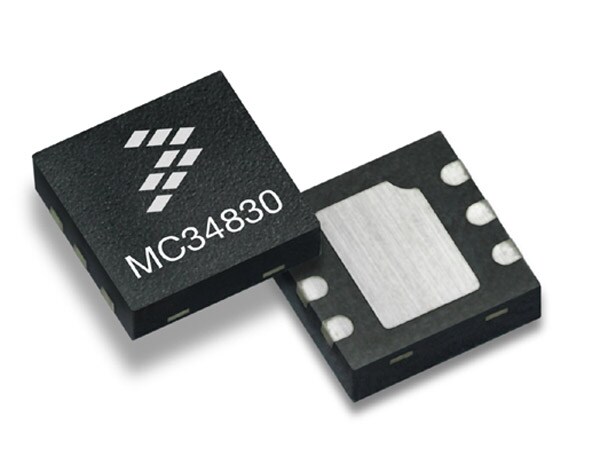

- MC34830
Video Buffer with DC Restore
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
Device Status: Not in Production

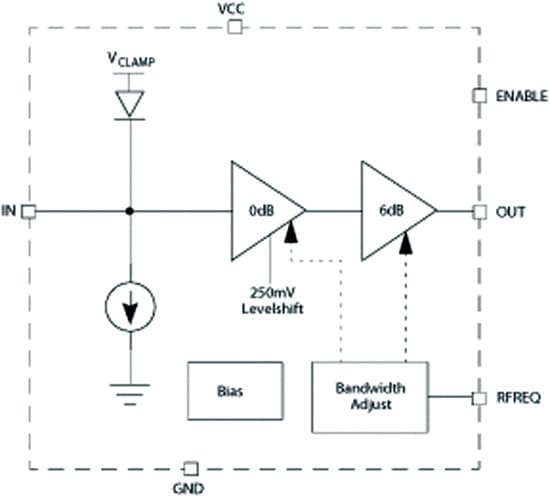

The 34830 is a very high performance video buffer that can handle HDTV bandwidths up to 1080p resolution. The integrated input clamp works with all sync formats and all types of video signals. The 34830 includes an innovative capability to set the bandwidth to the optimum trade-off of performance versus power dissipation. It can be adjusted all the way from HD frequencies to SD frequencies while benefiting from the lower power dissipation with lower bandwidths.It can drive two standard video loads which are DC or AC coupled. Input signals can be DC or AC coupled. For the DC coupled case, the input sync should be close to ground. The 34830 can be disabled, with shutdown current being 0.12μA.
Product Details
Target Applications
- Cellular phones
- Portable media players
- Portable game players
- Set-top boxes
- Security systems
- Laptop PCs
- Desktop PCs
- DVD players
- Digital cameras
- Camcorders
