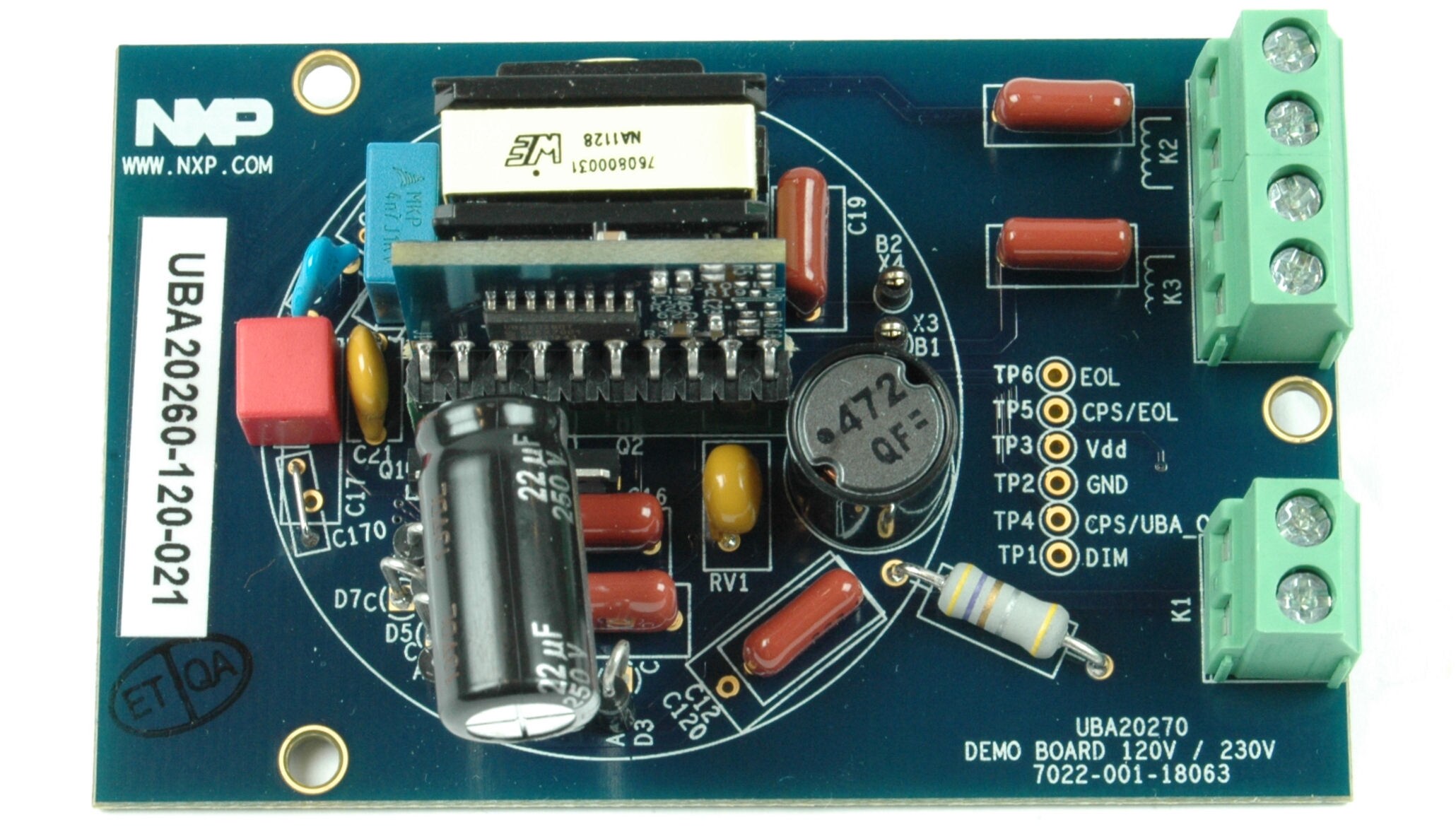

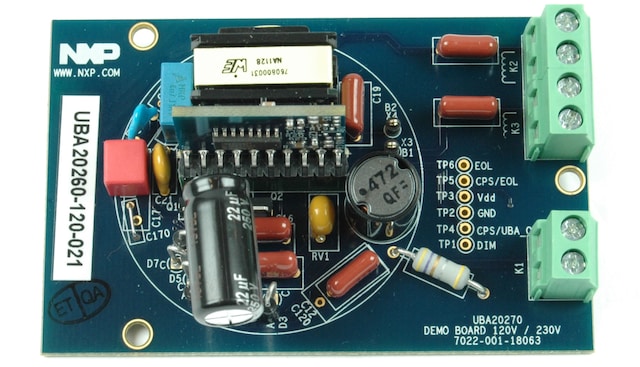

UBA20260DB01 23 W 120 V Step-dimming CFL reference design

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

The UBA20260 circuit is a half-bridge driver IC setup to drive a typical 23 W burner with a lamp current of about 240 mA. Similar lamp types with a nominal lamp power of 20 W can also be driven. The total power drawn from the mains is about 23 W at a nominal mains voltage of 230 V or 120 V (RMS). The UBA20260 board can easily be configured to drive different Compact Fluorescent Lamps (CFL) of different power ratings. Driving different CFL is possible by changing the inductor tap and installing a different lamp capacitor.

Documentation

Quick reference to our documentation types.

2 documents

^{User Guide}
230 V and 120 V reference design using UBA20260Getting Started

PDFRev 1.0Sep 30, 2011450.0 KBUM10499English
^{Data Sheet}
600 V and 350 V power IC for step dimmable CFLs

PDFRev 2.0Oct 10, 2011258.0 KBUBA20260English
