UBA2015AT dimmable dual lamp reference design 230 V

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

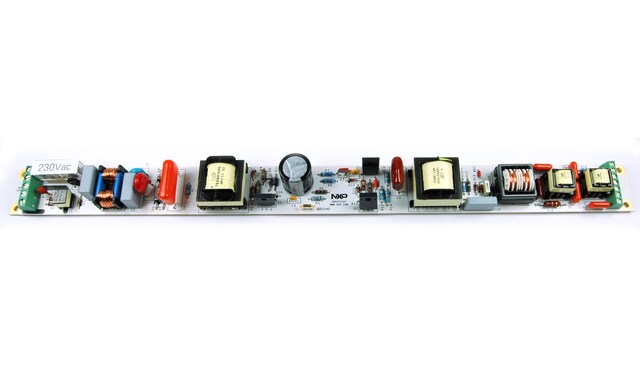

This reference design, based on the UBA2015AT, is intended to serve as a dimmable two lamp HF-TL ballast for two T5 35 W lamps in parallel. The reference design is designed to work on 230 V mains supply.

Documentation

Quick reference to our documentation types.

4 documents

^{User Guide}
UBA2015AT Reference Design 230 V (AC)Getting Started

PDFRev 1.1Feb 3, 20121.5 MBUM10440English
^{Data Sheet}
600 V fluorescent lamp driver with PFC, linear dimming and boost function

PDFRev 3.0Nov 16, 2011371.9 KBUBA2016A_15_15AEnglish
^{Application Note}
Fluorescent lamp driver with PFC using the UBA2015/16 family

PDFRev 2.0Aug 9, 20122.4 MBAN10958English
^{Application Note}
TL applications with NXP ballast controllers

PDFRev 1.0Sep 15, 2011453.2 KBAN10971English
