TEA1836 65W / 19.5V QR/ DCM Adapter

TEA1836DB1094 No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

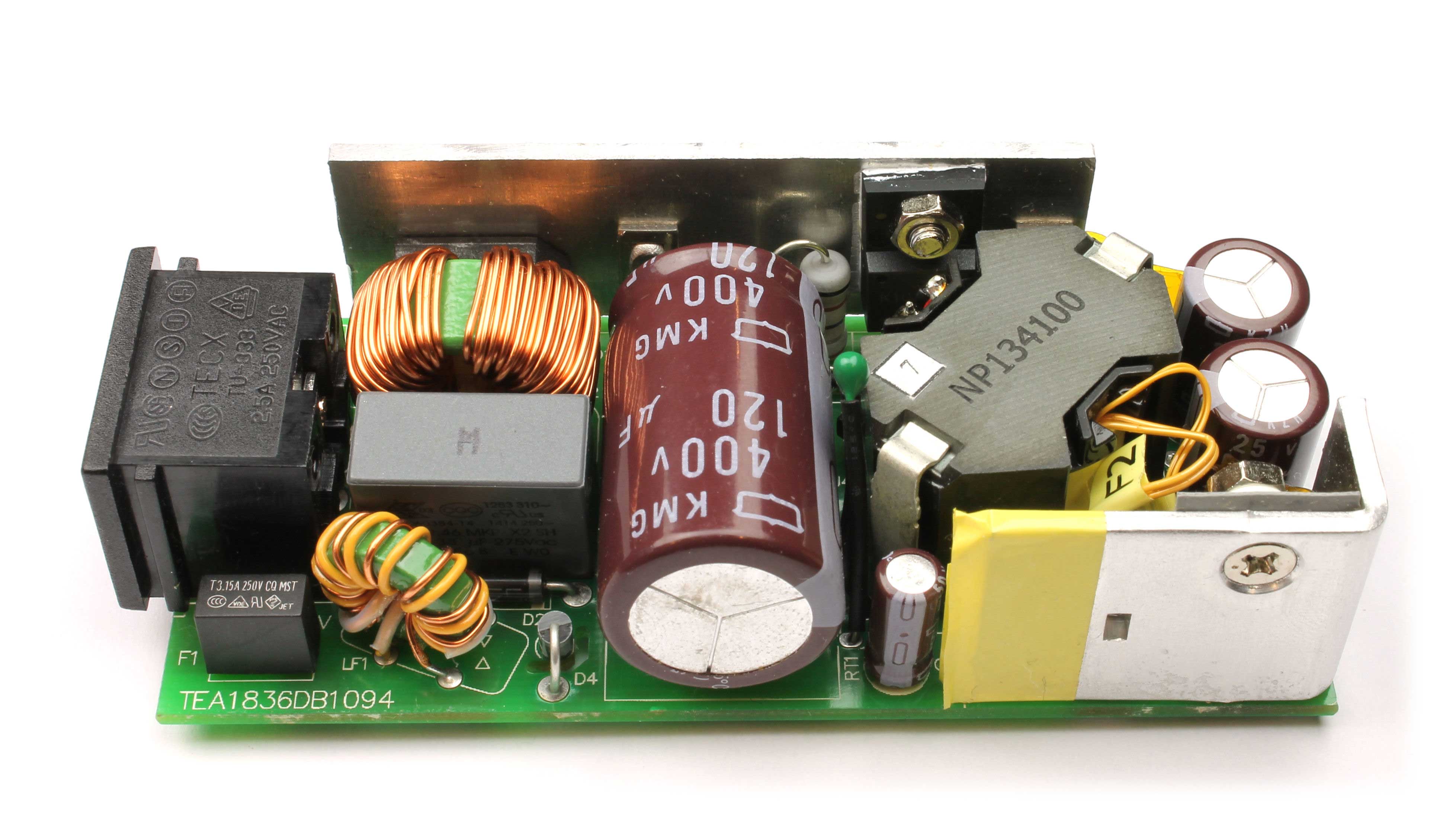

This board demonstrates a 65 W / 19.5 V AC/DC SMPS (notebook) power supply. The application is EMI CISPR22 and Energy STAR v6.0 and CoC tier 2 compliant. The used topology is QR/DCM frequency flyback. The adapter has several built-in protections and compensation features and excellent efficiency and standby power consumption performance.

Limited quantities of this type are available. Contact our local sales office to check availability.
