Surface Mount to DIP Evaluation Board

OM13491 Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

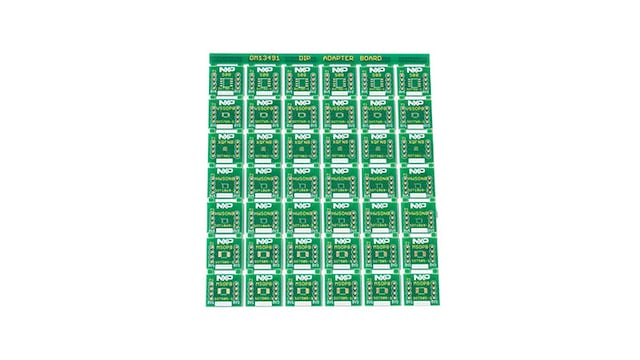

The OM13491 allows one to evaluate small, surface mount devices by breaking out the package leads to 100 mil centers pins, emulating a DIP package. The OM13491 supports the following packages: SO8 (SOT96), VSSOP8 (SOT765), XQFN8 (SOT902), HWSON8 x 2 (SOT1069), MSOP8 x 2 (SOT505).

Product Details

Features

Key Features

  • Easy connection to small surface mount packages
  • Allows evaluation of device that is only available in surface mount packages
  • 100 mil center headers emulate DIP package for easy bread boarding
  • Eliminates costly sockets and custom printed circuit boards
  • Expand the kit with add-on I²C daughter cards
