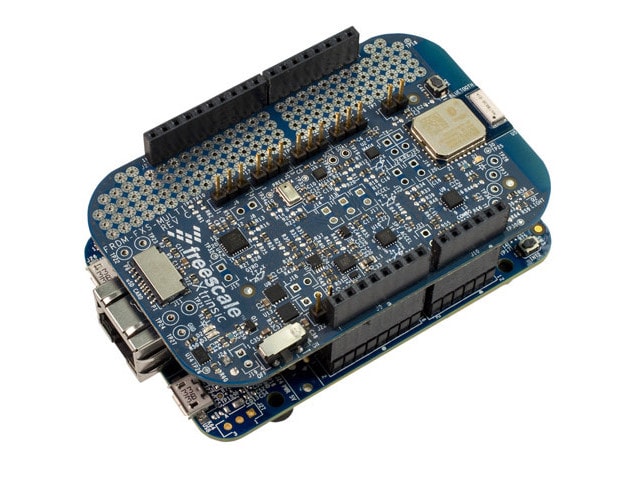

Sensor Fusion Development Kit

Sensor Fusion Development Kit | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

Please consider purchasing the FRDM-K64F-AGM01 which includes the FRDM-K64F board and the FRDM-STBC-AGM01 9-axis intelligent sensing development board.

Design Files

Software

Product Details

Features

Microcontroller

MK64FN1M0VLL12 MCU

120 MHz
1 MB flash memory
256 KB RAM

Memory

SDHC

Connectivity

Ethernet
Bluetooth Module and Battery

Debug

OpenSDAv2 debug

Sensors

FXOS8700CQ and MMA8652FC Accelerometers
MPL3115A2 Altimeter/Barometer Sensor
FXLS8471 Accelerometer
MMA9553L Pedometer
MAG3110 Magnetometer

Support

Community Support

Documentation

Quick reference to our documentation types.

1 document

Freescale Sensor Fusion Software Library and Development Kit[FRDMSFUSIONFS]Featured

PDFFeb 14, 2020Rev 1
