SA606DK Evaluation Demo Board

OM13531 Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

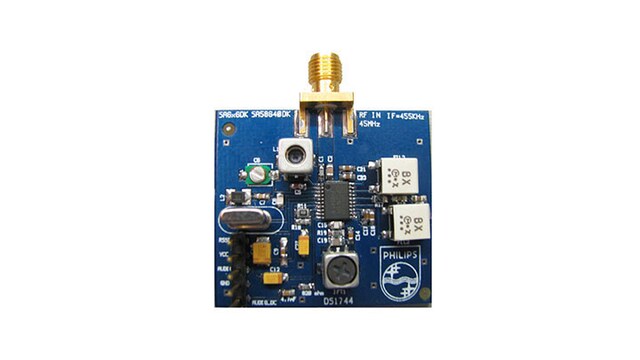

SA606DK evaluation demo board is used for RF bench evaluation at 45 MHz RF; 455 kHz IF

Product Details

Features

  • SA606DK operating @ 45 MHz RF; 455 kHz IF
  • RF bench evaluation

Buy Options

OM13531-Image

Click to expand

  • OM13531
    Active

  • SA606DK evaluation demo board.

    • SA606DK (SSOP20)
    • 1 ea SA606DK evaluation demo board
  • $210.41 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
