S08JM16 Demo Board

DEMO9S08JM16 Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

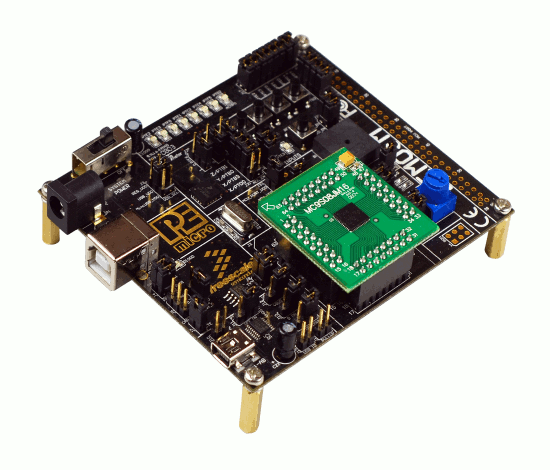

DEMO9S08JM16 is a cost-effective demonstration kit enabling quick MC9S08JM16 evaluation.

Includes a DEMOJM base board and a MC9S08JM16 daughter card and can be used to demonstrate the features of the MC9S08JM16 device, starting with the on-chip USB 2.0 full-speed device controller and transceiver. The USB features are supported in hardware through a dedicated USB mini-AB connector and in software through the included complimentary USB-LITE stack by CMX. Built-in USB-BDM circuitry is available for debugging and programming, serial communication and simple logic analyzer.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08JM: 8-bit USB Cost-Effective JM MCUs

Features

Connectivity

  • CAN Module with Enable
  • I2C Pullups with Enable

Power Management

  • A 6 VDC to 12 VDC power supply input barrel connector

Support

  • USB device mode and host mode support with Mini-AB USB connector

User Components

  • ON/OFF Power Switch w/ LED indicator
  • 3-axis Accelerometer with Enable
  • 8 User LED’s with Enable
  • 4 User Push Buttons with Enable
  • 1 Piezo Buzzer with Enable
  • 1 Piezo Buzzer with Enable
  • 10K Ohm POT with Enable
  • On-board Logic Analyzer
