QorIQ® P1025/P1016 Reference Design Board

P1025RDB No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

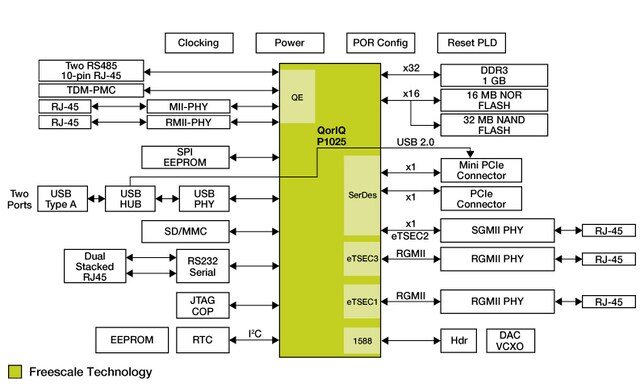

The QorIQ® P1025 reference design board can accelerate your time to market for products targeting the networking, telecom, aerospace and defense and industrial markets.

  • This cost-effective, highly integrated board is based on the QorIQ P1025 dual-core processor and features a broad array of modern connectivity options to help you quickly design, test and launch your application
  • Features 1 GB unbuffered DDR3 SDRAM, 16 MB NOR flash and 32 MB NAND flash, so the platforms can boot from either NOR or NAND flash memory
  • Includes a built-in security accelerator and QUICC Engine® for multi-protocol offload support

Product Details

Features

Core Complex

  • QorIQ® P1025 dual-core processor running at 400–667 MHz

Basic Peripherals and Interconnect

  • USB 2.0
  • System integration
    • Dual I²C
    • SD/MMC card slot
    • Mini AB connectors on I/O panel (default)
    • UARTs
    • IEEE 1588 signals for test and measurement
    • Two 10-Pin RJ45 RS485 ports
  • Board connectors

Accelerators and Memory Controller

  • 1 GB DDR3
  • 16 MB NOR flash memory
  • 32 MB NAND flash memory
  • 16 MB SPI ROM
  • 256 kB M2456 I²C EEPROM

Networking Elements

  • Dual 10/100 Mbit/s Ethernet ports for QUICC Engine® module
    • One MII PHY connected to UEC1
    • One RMII PHY connected to UEC5
  • Three Ethernet 10/100/1000 ports
    • One RGMII PHY connected to eTSEC1
    • One SGMII PHY connected to eTSEC2
    • One RGMII PHY connected to eTSEC3

Additional Features

  • Mini ITX form factor
  • RoHS compliance

Software Tools

  • Linux® SDK for QorIQ Processors
    • Linux kernel and device drivers
    • Applications/services
    • Libraries
    • GNU tools (compilers, linkers, etc.)
    • Yocto build tools
    • Deployment mechanisms
