Programmable LIN 1.3 Alternator Regulator

TC80310 No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

The TC80310 is designed to provide customers a complete system-on-die solution ,capable of managing the electrical parameters of an Alternator, with rotor excitation current up to 8A, using High Side Excitation technology combined with a Free Wheeling Diode. This new IC can control and diagnose the Alternator by using a standard and robust LIN 1.3 protocol. It also includes Load Response Control (LRC), Thermal Compensation combined with Thermal protection and a Self-Start operation (available in case of LIN disconnection), which are capabilites possible because of a long term NXP® background in the Alternator Regulator market.

Refer to Table 1, in the data sheet, for the factory programmed options. Contact sales for samples and ordering criteria.

Product Details

Block Diagram

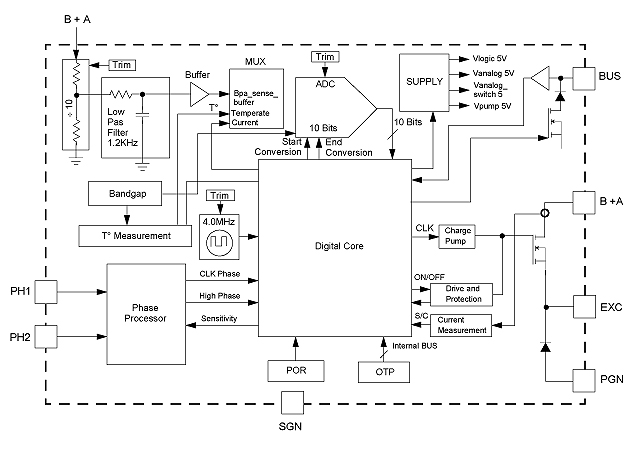

TC80310 Block Diagram

TC80310 Block Diagram
Get diagram PDF

Features

  • Integrated High Side Excitation Driver (Field)
  • Internal Free wheeling diode
  • Rotor Excitation coil up to 8.0A
  • Load Response Control (LRC)
  • Thermal protection
  • Thermal Compensation
  • Robust LIN 1.3 Interface
  • Selectable Regulation Voltage from 10.6V up to 16V (programming at NXP®.
  • Rotor Control and Die temperature monitoring via LIN communication
  • Self-Start operation available (in case of LIN disconnection)
  • Multiple adjustments capability for Loop Regulation (internal Ramp, digital filter)
