- No Longer Manufactured
- OM13543
NTS0304E Evaluation board
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

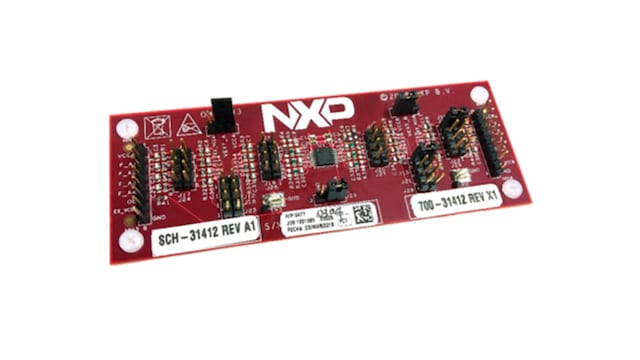

Evaluation board OM13543 is designed to evaluate NXP® NTS0304E which is a 4-bit, dual supply translating transceiver family with auto direction sensing, that enables bidirectional voltage level translation. It features eight 1-bit input-output ports (A and B), one output enables input (OE) and two supply pins (VCC(A) and CC(B)). VCC(A) can be supplied at any voltage between 0.95 V and 3.6 V. VCC(B) can be supplied at any voltage between 1.65 V and 5.5 V.
