- No Longer Manufactured
- Non-dimmable driver IC for CFL
Non-dimmable driver IC for CFL
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

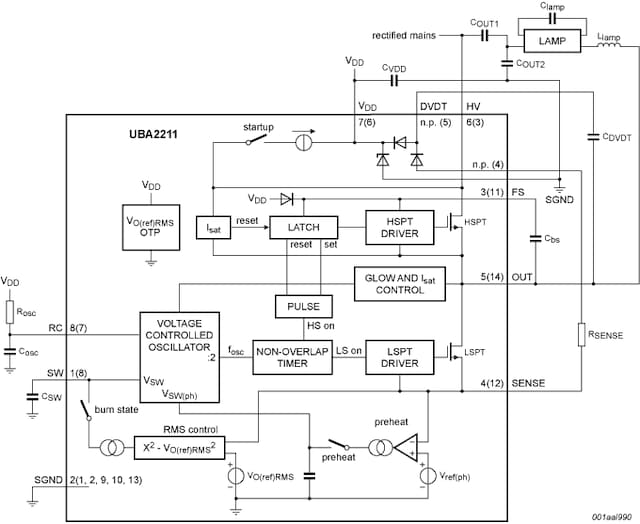

The UBA2211 family of integrated circuits are a range of high voltage monolithic ICs for driving Compact Fluorescent Lamps (CFL) in half-bridge configurations. The family is specifically designed to provide easy integration of lamp loads across a range of burner power and mains voltages.
Product Details
Part numbers include: UBA2211AP.
