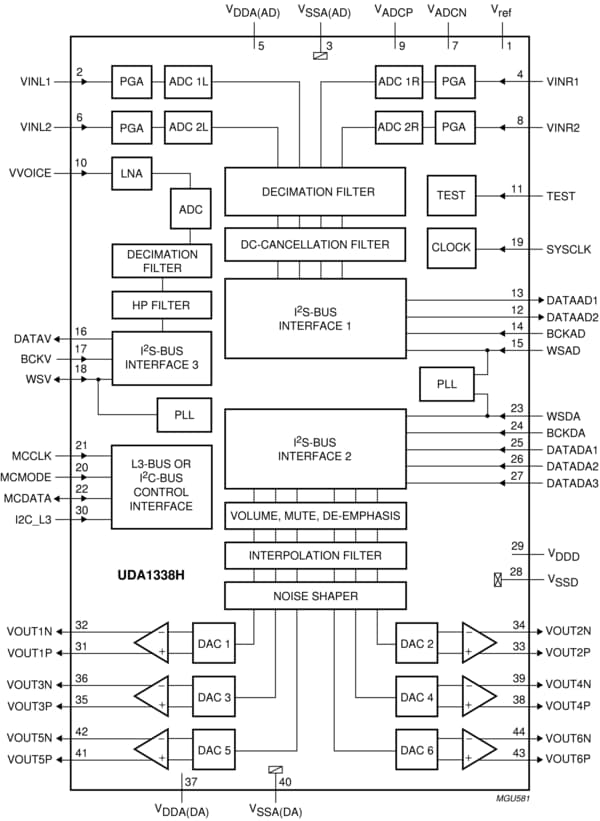

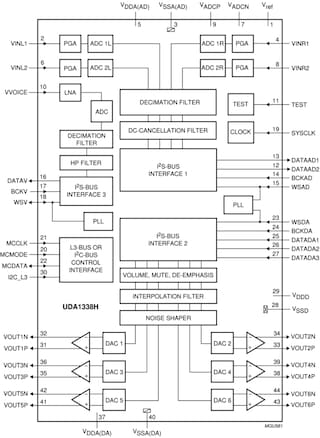

The UDA1338H is a single-chip consisting of 4 plus 1 analog-to-digital converters and 6 digital-to-analog converters with signal processing features employing bitstream conversion techniques. The multichannel configuration makes the device eminently suitable for use in digital audio equipment which incorporates surround feature.
The UDA1338H supports conventional 2 channels per line data transfer conformable to the I2S-bus format with word lengths of up to 24 bits, the MSB-justified format with word lengths of up to 24 bits and the LSB-justified format with word lengths of 16 bits, 20 bits and 24 bits, as well as 4 to 6 channels per line transfer mode. The device also supports a combination of the MSB-justified output format and the LSB-justified input format. The UDA1338H has special sound processing features in the Direct Stream Digital (DSD) playback mode, de-emphasis, volume and mute which can be controlled via the L3-bus or I²C-bus interface.
1 result
Exclude 1 NRND
Part | CAD Model | Package Type | Status | Product description | Input formats | Output formats | Control Interface | T[min] - [max] | Resolution [max] | Sampling rate [min] - [max] | Power dissipation [Typ] | ADC SNo [Typ] | DAC SNo [Typ] (dB) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
QFP44 | No Longer Manufactured | 4x audio ADC, 1x voice ADC (mic input), 6x audio DAC, with basic audio processing | Analog, I2S | Analog, I2S | I2C, L3 | -20 - +85 | 24 | ADC: 7 - 100, DAC: 16 - 200 | 150 | 100 | 114 |
