- MRF101AN RF Essentials Kit
MRF101AN RF Essentials Kit
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
Jump start your RF amplifier design with NXP's MRF101AN RF Essentials Kit.
Using MRF101AN, a 100 W RF power LDMOS transistor designed in an easy-to-use TO-220 package, the RF Essentials Kit helps accelerate PA design. Reference circuit examples are available for various applications with frequencies ranging from 1.8 to 250 MHz.
Typical Applications
- Amateur radio
- Broadcast
- Industrial, scientific, medical (ISM)
- RF energy
- Switch mode power supplies
Product Details
Features
MRF101AN RF Power LDMOS Transistor
- 50 V
- 100 W CW
- 1.8 to 250 MHz
- TO-220 over-molded plastic package
Design Resources
- BOM for compact reference designs
- Tuning tips

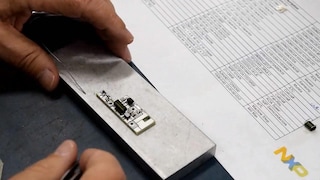

- Assembly demo video
- Quick reference card
Cost-effective
- Bolt-down package
- Excellent thermal performance
- Flexible operating voltage
- PCB is suitable for designs at different frequencies

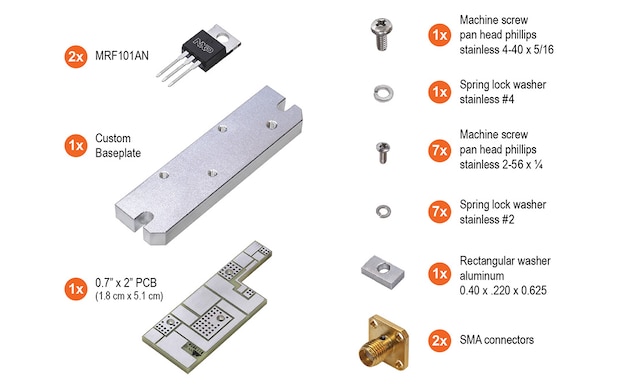

Kit includes
- Two MRF101AN 50 V RF power LDMOS transistors
- Custom fabricated baseplate
- 0.7″ x 2″ PCB
- Two SMA connectors
- Hardware
- Quick reference card
Supported Devices
- MRF101AN: 100 W CW over 1.8-250 MHz, 50 V Wideband RF Power LDMOS Transistor
