MPC560xS Evaluation Board

MPC5606SDEMO Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

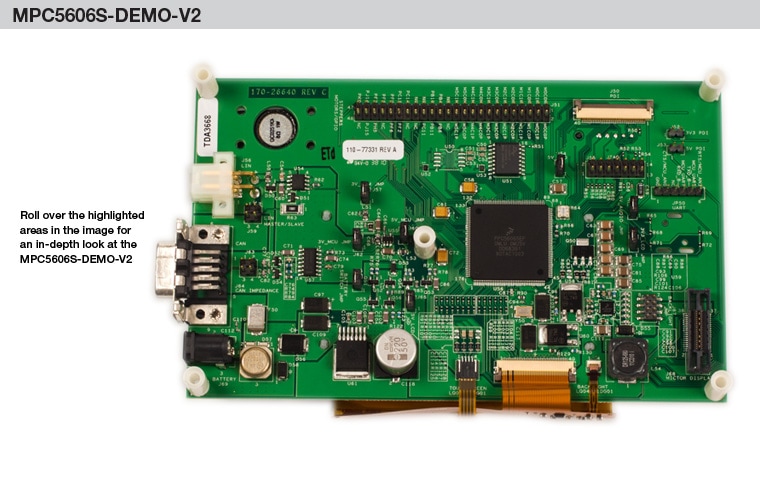

The MPC5606S-DEMO evaluation board allows testing most of the NXP® MPC5606S MCU features, especially graphics. The MPC56xxS family is the latest generation of 32-bit Power Architecture® MCUs that address color thin-film transistor (TFT) displays in automotive instrument cluster applications. It offers a cost-effective entry-level instrument cluster solution with the ability to scale your designs to fit your performance needs.

Product Details

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC56xx MCUs

  • MPC560xS: Ultra-Reliable MPC560xS MCU for Automotive and Industrial Instrument Clusters
