- TWR-MECH | Mechatronics
Mechatronics Tower System Module
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
Archived content is no longer updated and is made available for historical reference only.
The NXP® Tower® Mechatronics Board can be demonstrated within NXP Mechatronics Robot, an easy-to-use mechatronics development and demonstration platform.

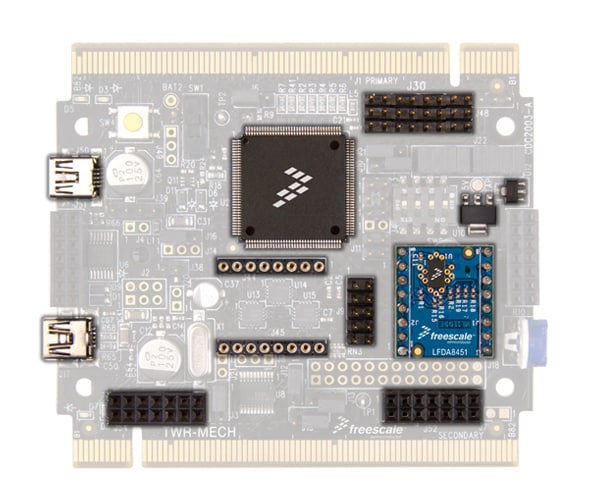

- The Tower System Mechatronic Board has a 3-axis accelerometer, 3-axis magnetometer and a 12-channel touch sensor
- It is programmable in C/C++ using CodeWarrior® and an on-board OSBDM flash programming tool
- For fast prototyping or for individuals without C/C++ experience, the Tower System Mechatronics Board is supported by Stick OS
Product Details
Features
Microcontroller
- MCF52259 32-bit MCU with 64K RAM, 512K flash
Connectivity
- Optional plug in sensor daughter boards available for: touch, accelerometer, magnetometer
- Integrated open source BDM (8-bit 9S08JM60 USB enabled MCU)
Debug
-
Integrated open source BDM (8-bit 9S08JM60 USB enabled MCU)
User Components
- MPR121 capacitive touch sensor
- MMA8451Q 3-axis accelerometer
Tools and OS Support
- Supported by Stick OS
- Programmable in C/C++ using CodeWarrior®
- Control up to eight PWM RC servo motors (compatible with VEX™ 3 wire servos)
- Can be used standalone, or plugged into the Tower® System
