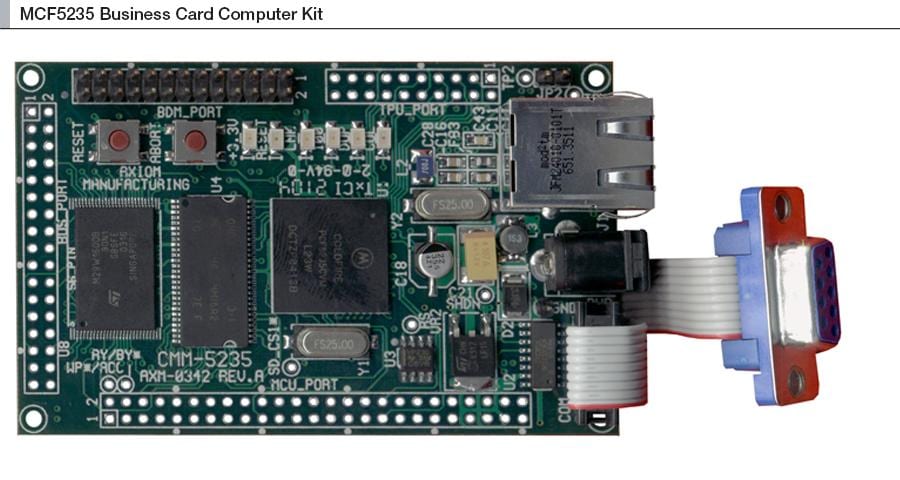

MCF5235 Business Card Computer Kit
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
Archived content is no longer updated and is made available for historical reference only.
The M5235BCCKIT offers a complete low-cost method for evaluation the NXP® MCF5235 ColdFire® microprocessor. In addition to the M5235BCC module, the M5235BCCKIT includes a P&E wiggler cable, a CE certified power supply, and associated components needed to run right out of the box.
About the size of a business card (3.5 inches x 2.2 inches), the M5235BCC module comes with 2 Mbytes of flash, 16 Mbytes of SDRAM, a 10/100 BaseT Ethernet port, and an award winning ColdFire debug module. Open source GNU tools and an open source TCP/IP stack is also available along with an available RTOS. NXP offers both the M5235BCCKIT and the stand-alone M5235BCC.
Product Details
Features
Processor
- MCF5235 CPU
Memory
- 2M Byte Flash (16 bit, external)
- 16M Bytes SDRAM (32 bit, external)
Connectivity
- Serial ports, DB-9 Connectors
- 10/100TX Ethernet Port w/ RJ45 Connector
Power Management
- Regulated +3.3V and +1.5V power supply w/ indicator
- Power Input: +5 - +30VDC, 12VDC typical
- Current Consumption: 120ma @ 12VDC input typical (100Mhz clock)
- 4 status Indicators, Auto MDI-X crossover.
Size
- Board Size 3.5” x 2.2 inches w/ 4 x #2 mounting holes
