LPCXpresso LPC1114 Schematic Rev A
- No Longer Manufactured
- LPCXpresso Board for LPC1115
LPCXpresso Board for LPC1115
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

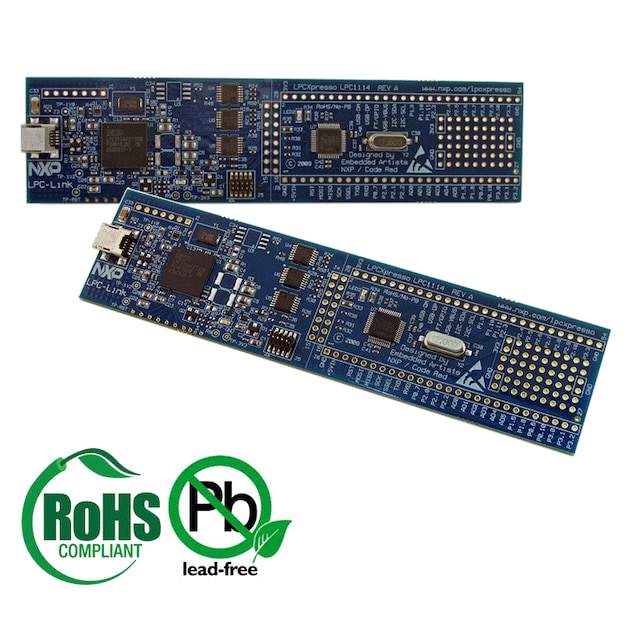

LPCXpresso™ is a new, low-cost development platform available from NXP® supporting NXP's Arm-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an attached JTAG debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.
Populated with the LPC1115 to demonstrate LPC111x features, the LPCXpresso LPC1115 combines the industry‘s lowest 32-bit active power consumption of the LPC1115 and the low price point of the LPCXpresso.
The LPCXpresso™ LPC1115 is discontinued and replaced by the OM13087
