LPC82x Touch Solution

OM13081 Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

This board is no longer manufactured and will only be available while supplies last.

NXP’s Capacitive Touch Solution is based on the Switched Capacitor Integration technology. This variant of the solution is centered around LPC82x MCU family, and it consists of hardware plus software platform for enabling the touch user interface designs.

The order code for this board is OM13081.

Product Details

Features

Microcontroller

  • LPC824 MCU

Display

  • integrated LCD display
  • GUI to visualize/analyze the touch data

Connectivity

  • Integrated UART to USB bridge
  • Arduino® UNO compatible Touch Shield

Debug

  • Integrated debug probe

Modes supported

  • Touchpad (8-bit resolution)
  • 9 Keys
  • USB Drag and Drop Programming

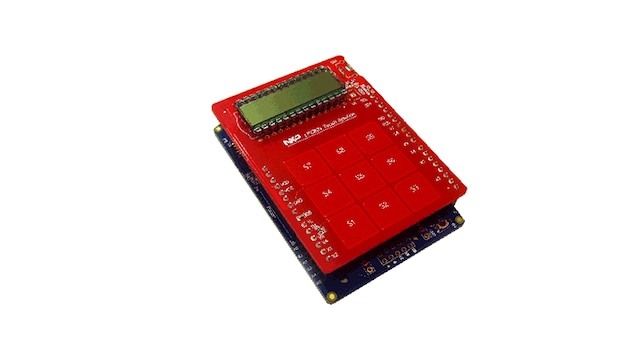

  • LPC824 centric capacitive touch sensor shield board

Buy Options

OM13081-Image

Click to expand

  • OM13081
    Active

  • LPC82x Touch Solution.
