LPC812-LPCXpresso Board

OM13053 Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

This board is no longer in production. The replacement for this board is the OM13055 (LPCxpresso812MAX)

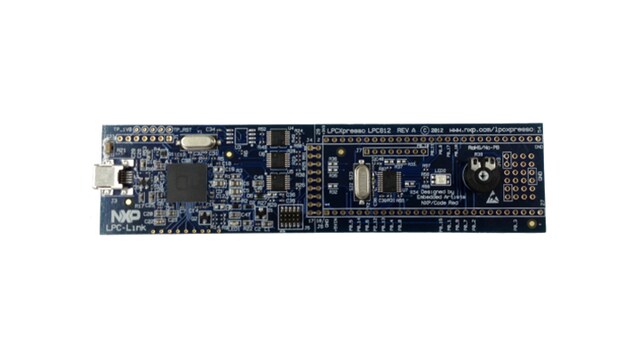

The LPC812-LPCXpresso board with NXP®'s LPC812 Cortex-M0+ microcontroller is designed to make it as easy as possible to get started with your project. Combined with the the full-featured, easy-to-use Eclipse-based LPCXpresso IDE, the entire product design cycle for the LPC800 is supported.

The LPCXpresso development platform is jointly developed by NXP®, and Embedded Artists.

The order code for this board is OM13053

Product Details

Features

Microcontroller

  • NXP®'s LPC812 Cortex-M0+ microcontroller in TSSOP20 package
  • 16 kB of Flash, 4 kB of Data Memory
  • 12 MHz crystal for CPU

Connectivity

  • UART header compatible with C232HD-DDHSP-0 cable (or similar) for In-System Programming
  • All LPC812 pins available on expansion connector (2 x 27-pin rows, 100 mil pitch, 900 mil between rows)
  • Embedded JTAG (LPC-LINK) functionality via LPCXpresso IDE
  • LPC-LINK can be connected to external target processor after modifications to the LPCXpresso board

Power Management

  • 3.15 V - 3.3 V external power, or from USB via onboard LPC-LINK JTAG probe

Components

  • Potentiometer connected to ACMP_I1
  • RGB LED connected to PIO0_7, PIO0_16 and PIO0_17

Buy Options

OM13053-Image

Click to expand

  • OM13053
    Active

  • LPC812-LPCXpresso Board.
