LPC General Purpose Shield for LPCXpresso boards

OM13082 Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

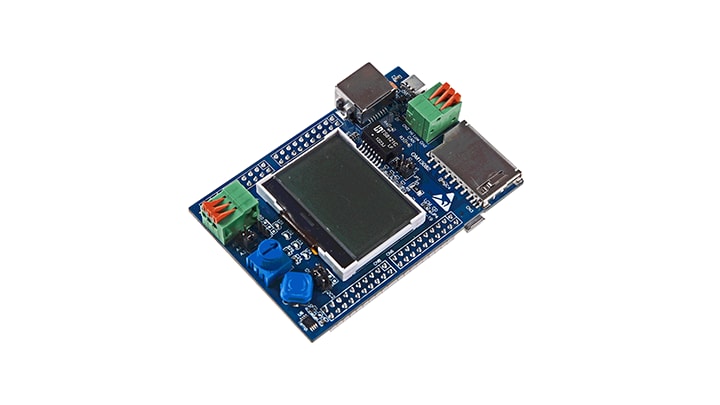

Roll over image to zoom in

This board is no longer manufactured and will only be available while supplies last.

The LPC General Purpose Shield Board has been designed to complement NXP’s range of LPCXpresso MCU development boards by providing easy access to several commonly used peripherals. The LPC General Purpose Shield plugs into the top-side expansion connectors of LPCXpresso V2, V3, and MAX boards.

The order code for this board is OM13082.

Product Details

Supported Devices

Processors and Microcontrollers

LPC4300 Arm Cortex-M4/M0

  • LPC4337FET256: 32-Bit Arm® Cortex®-M4/M0 MCU; Up to 1 MB Flash and 136 KB SRAM; Ethernet, Two High-Speed USB, LCD, EMC
  • LPC4337JBD144: 32-Bit Arm® Cortex®-M4/M0 MCU; Up to 1 MB Flash and 136 KB SRAM; Ethernet, Two High-Speed USB, LCD, EMC
  • LPC4337JET100: 32-Bit Arm® Cortex®-M4/M0 MCU; Up to 1 MB Flash and 136 KB SRAM; Ethernet, Two High-Speed USB, LCD, EMC
  • LPC4337JET256: 32-Bit Arm® Cortex®-M4/M0 MCU; Up to 1 MB Flash and 136 KB SRAM; Ethernet, Two High-Speed USB, LCD, EMC

Features

Memory

  • SD/MMC card slot (requires LPCXpresso V3 board with SDIO interface)

Connectivity

  • Ethernet RJ45 connector and magnetics (requires LPCXpresso V3 board with onboard PHY)
  • CAN terminal block (requires LPCXpresso V3 board with CAN interface)
  • Micro USB B device connector (requires LPCXpresso V3 board with USB support via expansion)

Sensors

  • NXP LM75D temperature sensor (I²C)
  • Bosch BMI160 inertial measurement unit (3-axis accelerometer and 3-axis gyroscope, I²C)

Display

  • 128 x 64 LCD dot-matrix display connected via SPI

Components

  • 4 user LEDs and 5 position joystick, controlled via an NXP® PCA9535BS I²C port expander
  • Potentiometer

Buy Options

OM13082-Image

Click to expand

  • OM13082
    Active

  • LPC General Purpose Shield.

    • LPC General Purpose Shield Board
