Low voltage start-up flyback controller suitable for fixed frequency/CCM | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

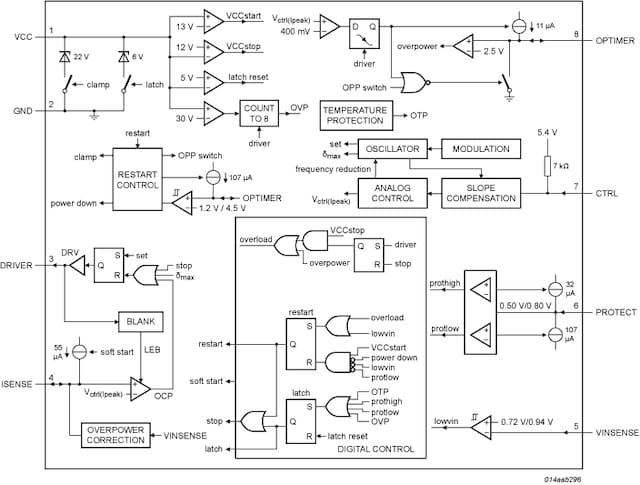

The TEA1738 family of IC´s are low cost Switched Mode Power Supply (SMPS) controller IC´s intended for flyback topologies. They operate in peak current and frequency control mode. To reduce Electro Magnetic Interference (EMI), frequency jitter has been implemented. Slope compensation is integrated for Continuous Conduction Mode (CCM) operation.

Data Sheet

Application Notes

Buy/Parametrics

Part Show description	CAD Model	Package Type	Topology
TEA1738FT Data Sheet Replacement part(s): TEA1738T		SO8	FF

Design Resources

Receive the full breakdown. See the product footprint and more in the eCad file.

Shopping cart

Low voltage start-up flyback controller suitable for fixed frequency/CCM

Buy/Parametrics

Documentation

Filter by

Application Note (2)

GreenChip TEA1738 series fixed frequency flyback controller[AN10981]

Reducing standby power[AN11012]

Brochure (1)

NXP® GreenChip flyback controllers TEA173x[75017052]

Data Sheet (1)

GreenChip SMPS control IC[TEA1738FT]

Package Information (1)

Plastic, small outline package; 8 terminals; 1.27 mm pitch; 4.9 mm x 3.9 mm x 1.75 mm body[SOT96-1]

Packing Information (1)

SO8; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118[SOT96-1_118]

Selector Guide (1)

Application guide: Flat-panel TV sets[75017085]

User Guide (1)

TEA1738; TEA1703 reference board[UM10437]
