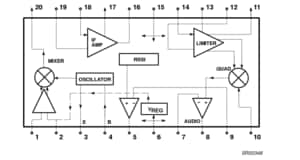

The SA606 is a low-voltage high performance monolithic FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, logarithmic Received Signal Strength Indicator (RSSI), voltage regulator and audio and RSSI op amps. The SA606 is available in SO20 and SSOP20 packages.
The SA606 was designed for portable communication applications and will function down to 2.7 V. The RF section is similar to the famous SA605. The audio and RSSI outputs have amplifiers with access to the feedback path. This enables the designer to adjust the output levels or add filtering.
1 result
Exclude 1 NRND
Part | CAD Model | Package Type | Function | RF frequency [max] (MHz) | IF bandwidth [max] | VCC [min] (V) | VCC [max] (V) | ICC [max] (mA) | Mixer gain [min] (dB) | Noise figure [Typ] (dB) | 12 dB SINAD fdev=8 kHz | Data rate [max] (kb/s) | RSSI dynamic range [typ] (dB) | Status |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SO20 | Single conversion receiver | 150 | 2 | 2.7 | 6 | 4.2@3 V | 13.5 | 6.2@45 MHz | -120 | 2 | 90 | No Longer Manufactured |
