Linux® Point of Sale (POS) Reader

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

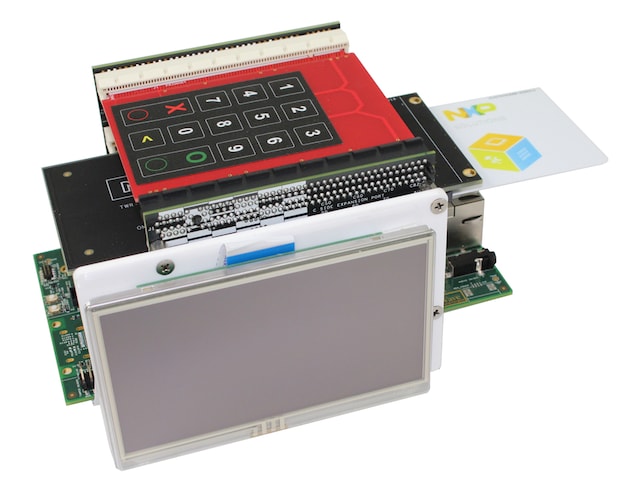

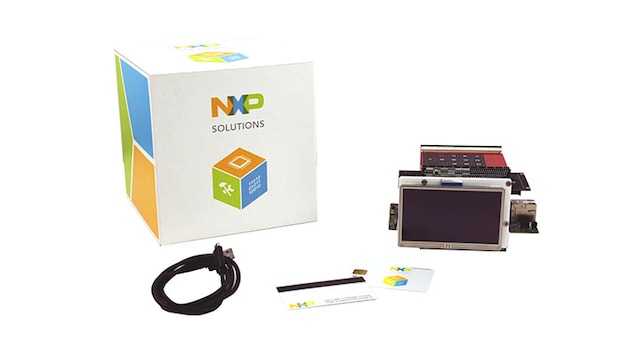

The SLN-POS-LRDR Linux Point of Sale Reader Solution enables you to quickly build a Linux-based POS terminal or add a PCI^®- and EMVCo^®-compliant PIN entry device, NFC reader, chip card reader and magnetic stripe reader to any design to enable credit card payment. This solution is precertified for EMVCo and PCI PTS standards to give companies confidence that they will have a high likelihood of passing certification the first time without the added expense of failing and resubmitting.

Design Files

Software

Product Details

Block Diagram

Choose a diagram:

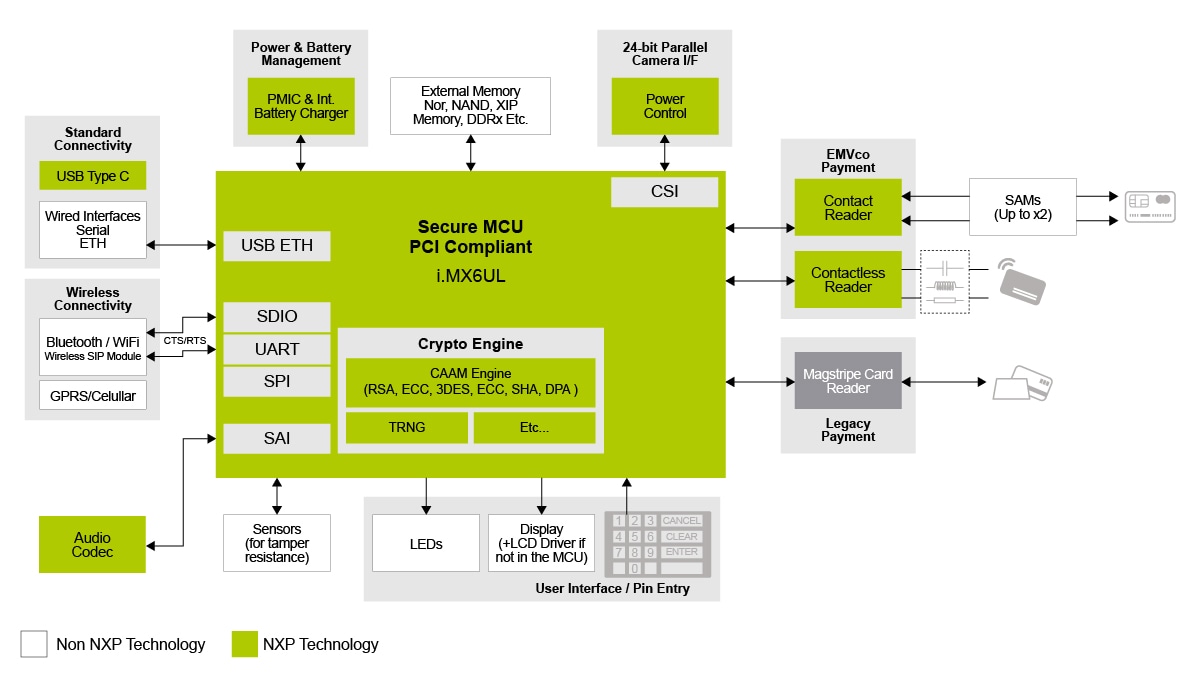

Linux PoS Hardware
Linux PoS Software

Linux PoS Hardware

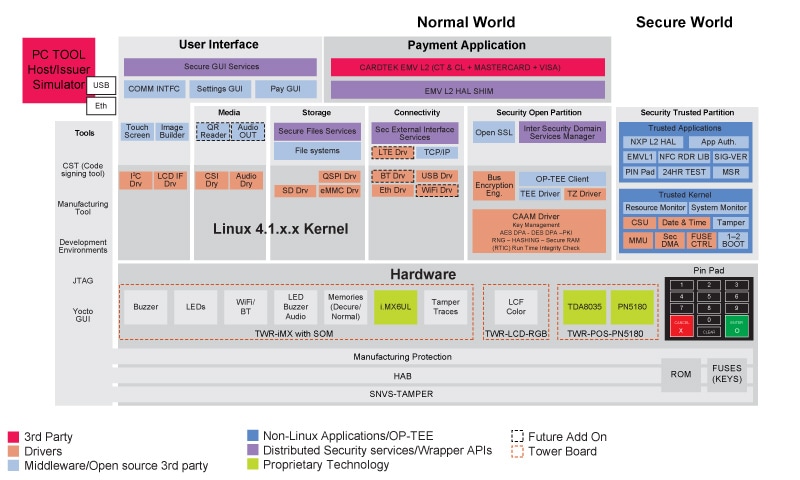

Linux Card Reader R1 Software Architecture Diagram

Linux PoS Software

Get diagram PDF

Supported Devices

Security and Authentication

Contact Readers

TDA8035HN: High-Integrated and Low-Power Smart Card Interface

RFID

NFC Readers

PN5180: Full NFC Forum-Compliant Frontend IC

Processors and Microcontrollers

i.MX 6 Processors

i.MX6UL: i.MX 6UltraLite Processor - Low-Power, Secure, Arm^® Cortex^®-A7 Core

Power Management

PMICs

PF3001: 10-Channel Configurable PMIC for i.MX6 and i.MX7 Application Processors

Load Switches

NX5P3090UK: USB PD and Type-C Current-Limited Power Switch

Analog and Mixed Signal

Voltage Level Translators

NTS0104: Dual-Supply Translating Transceiver (Open-Drain, Auto-Direction Sensing)

Interfaces

USB Interfaces

PTN5150: CC Logic for USB Type-C Applications

Audio

Audio Converters

SGTL5000: Ultra-Low-Power Audio Codec

Features

EMVCo

EMVCo Level 1 CT/CL stacks by NXP
EMVCo Level 2 CT/CL stacks by PayCore
EMVCo and PCI POI 5.x Certification

i.MX

i.MX6UL single Arm Cortex-A7 Processor

Payment Readers

PN5180 contactless 13.56 MHz NFC front-end IC
TDA8035 contact front-end IC

Buy Options

Click to expand

SLN-POS-LRDR
Active
Linux^® Point of Sale (POS) Reader.

Request this item

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
