ISF-v2.2-KINETIS

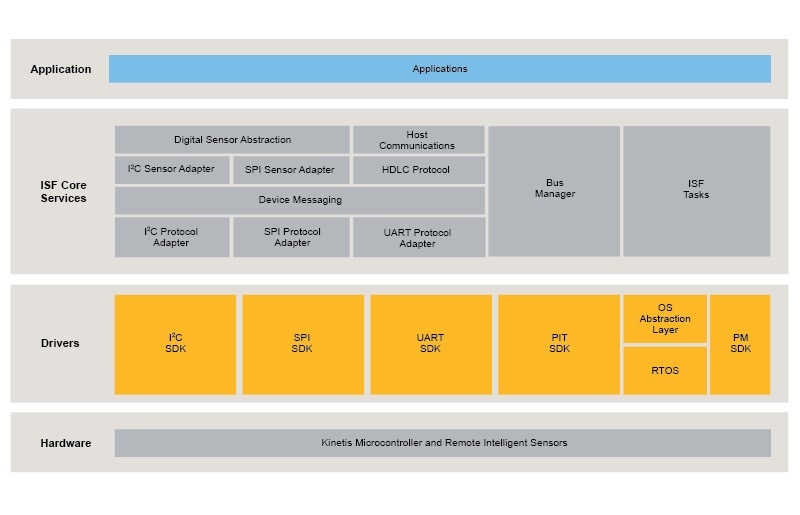

ISF 2.2 runs on the Kinetis family of MCUs and is compatible with KSDK 1.2 targeting KDS 3.0. This includes support for the FreeRTOS operating system through the OS abstraction available in the KSDK 1.2 in addition to MQX. ISF 2.2 continues to capitalize on Processor Expert’s capability to configure and generate code based on the application configuration.
For Generic Data Logging applications, the recommendation is to use the specific version of ISF for Generic Data Logging Applications.
The download button takes you to the Downloads page.
Software Details
Supported Devices
Kinetis - Cortex M0+, Cortex M4, Cortex M4F-
Accelerometers
- FXLS8471Q: ± 2g/± 4g/± 8g, Low g, 14-Bit Digital Accelerometer
- FXOS8700CQ: Digital Sensor 3D Accelerometer (± 2g/± 4g/± 8g) + 3D Magnetometer
- MMA8652FC: ± 2g/± 4g/± 8g, Low g, 12-Bit Digital Accelerometer
- MMA8653FC: ± 2g, ±4g,± 8g, Low g, 10-Bit Digital Accelerometer
- FXLC95000CL: Intelligent Motion-Sensing Platform
-
Gyroscope
- FXAS21002C: NXP 3-Axis Digital Gyroscope
-
Magnetometer
- FXOS8700CQ: Digital Sensor 3D Accelerometer (± 2g/± 4g/± 8g) + 3D Magnetometer
- MAG3110: NXP High Accuracy, 3D Magnetometer
-
Pressure
- MPL3115A2 : 50 to 110 kPa, Absolute Digital Pressure Sensor
Downloads
Quick reference to our software types.
2 downloads
-
Debugging and Visualization Tools
Freedom Sensor ToolBox - Community Edition (STB-CE)
-
BSPs and Device Drivers
Intelligent Sensing Framework
Note: For better experience, software downloads are recommended on desktop.
