IAR KickStart Kit Featuring NXP Semiconductors LPC11A14 MCU

OM13025 Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

This board is no longer manufactured and will only be available while supplies last.

  • LPC11A14 (Cortex-M0) device: 32 kB flash, 8 kB SRAM, 4 kB EEPROM
  • Configurable analog/mixed-signal, 50 MHz CPU frequency
  • J-Link Lite debug adapter included
  • Standard 19-pin JTAG/SWD connector and 9-pin SWD connector
  • Board can be powered via JTAG/SWD, USB or external 6-9 V DC power adapter (not included)

    • Product Details

    Features

    Connectivity

    • USB connector - USB/UART bridge
    • RS-232 / 485 (DB9) connector
    • Extension connectors for all other signals (I2C, SSP etc.)

    Display

    • Small LCD – low power 8 character 7 segment display

    User Components

    • Potentiometer - 2 ADC input channels
    • Buzzer – 1 DAC output
    • User, wake-up, and Reset buttons
    • 8 GPIO LEDs
    • Power LED, power via JTAG, USB, or external DC power adapter
    • The board is RoHS compliant

    Buy Options

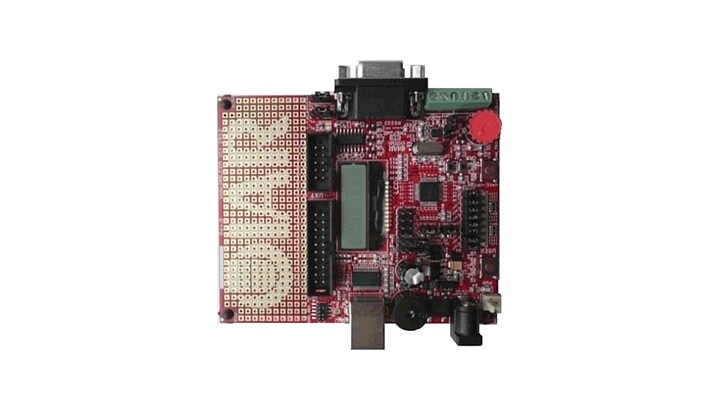

    OM13025-Image

    Click to expand

    • OM13025
      Active

    • IAR KickStart Kit Featuring NXP Semiconductors LPC11A14 MCU.
