- No Longer Manufactured
- UBA2080T
Half-bridge level-shift controller IC
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

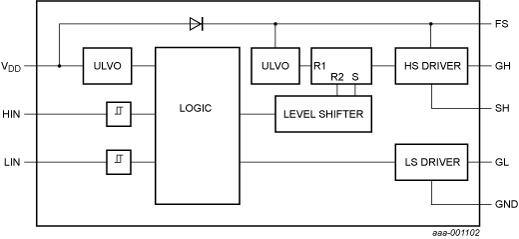

The UBA2080 is a high voltage monolithic integrated circuit made using the latch-up free Silicon-On-Insulator (SOI) process. The circuit is designed for driving MOSFETs in a half-bridge configuration.
