Evaluation Kit - MC25XS6300, Triple High Side Switch

KIT25XS6300EKEVB Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

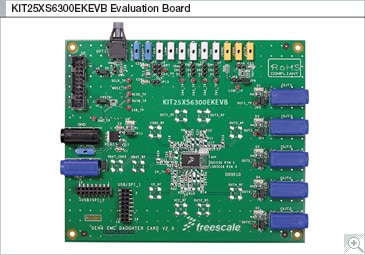

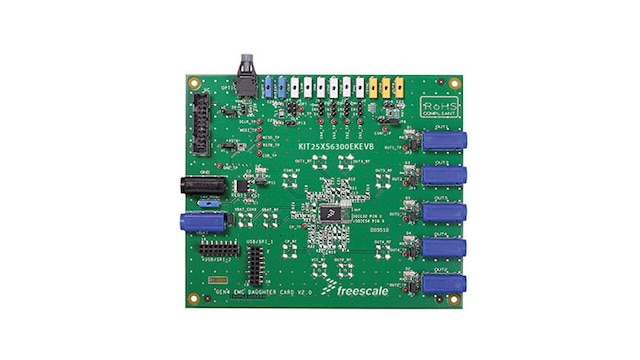

This eXtreme switch evaluation board demonstrates the capability of the MC25XS6300 as a 12 V triple high side switch product, that provides integrated control along with a large number of protective and diagnostic functions.

This product has been designed for truck, bus, and industrial applications. The low RDS(ON) channels (< 25 mOhm) control different load types; bulb lamps, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit SPI (serial peripheral interface), allowing easy integration into existing applications. All three channels can be controlled individually by external/internal clock-signals or by direct inputs. Using the internal clock allows fully autonomous device operation.

Product Details

Features

Connectivity

  • Output with selectable slew-rate satisfies electromagnetic compatibility (EMC) requirements
  • Each output can be controlled with an internal PWM modulated clock signal, instead of an external clock

Power Management

  • Input voltage operation range from 6.0 to 58 V

General Specifications

  • Programming, control, and diagnostics accomplished via the use of a 16-bit SPI interface

Components

  • Triple high side switches (each < 25 mOhm RDS(ON))
