Evaluation Kit - 33810, Automotive Engine control IC

KIT33810EKEVME Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

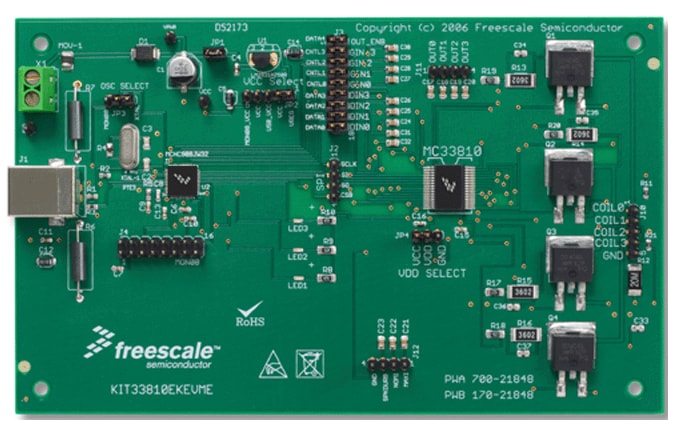

This EVALUATION KIT features the MC33810 Automotive Engine Control IC, which is an eight channel output driver IC intended for automotive engine control applications. The IC consists of four integrated low side drivers and four low side gate pre-drivers. The low side drivers are suitable for driving fuel injectors, solenoids, lamps, and relays. The four gate pre-drivers can function either as ignition IGBT gate pre-drivers or as general purpose MOSFET gate pre-drivers.

The PCB contains an MC68HC908JW32 MCU, which provides a USB to SPI interface communication translation, to allow interface to the evaluation board from a PC.

Archived content is no longer updated and is made available for historical reference only.
