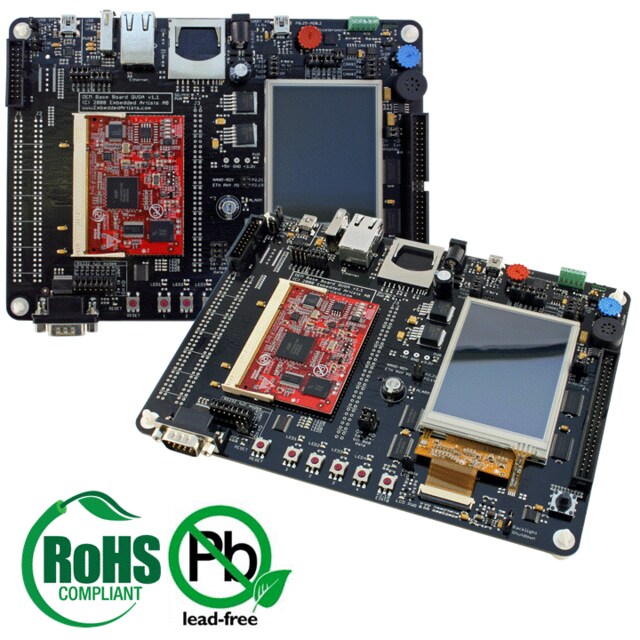

EA LPC3250 Evaluation Board
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
The EA LPC3250 Evaluation Board allows you to quickly and easily evaluate the LPC3200 family of microcontrollers. The microcontroller, board, and accompanying features make it a great starting point for your next Arm-9 project.
Populated with the LPC3250 to demonstrate LPC3200 features, the LPC3250 board allows the evaluation of the high level integration, high performance, and low power consumption of the LPC3250.
Order Number: OM11045
This board is discontinued and no longer available from NXP.
