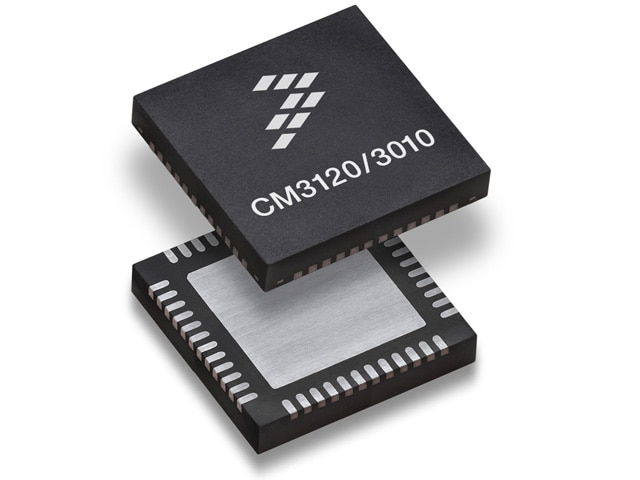

- CM3120
Dual Transceiver IO-Link Leader IC
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

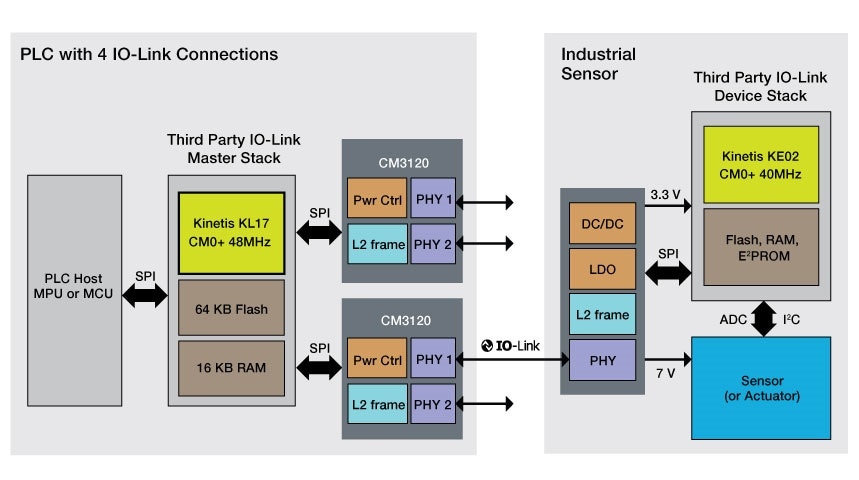

The CM3120 is a dual IO-Link Leader physical layer dedicated to the industrial automation market. It includes two fully featured IO-Link channels with an IO-Link frame handler which is fully compliant with the IO-Link v1.1 specification.
- The frame handler implements most of the IO-Link low-level communication tasks which significantly decreases load and number of required I/O of the leader microcontroller.
- The MC34CM3120 provides also protection and monitoring mechanisms such as overcurrent, overvoltage and over temperature.
- Two LED drivers provide signaling for each channel. This part is well suited for leader IO-Link systems.
