DEMO9S12XSFAME Schematic and BOM
- No Longer Manufactured
- Demonstration Board for MC9S12XS128
Demonstration Board for MC9S12XS128
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

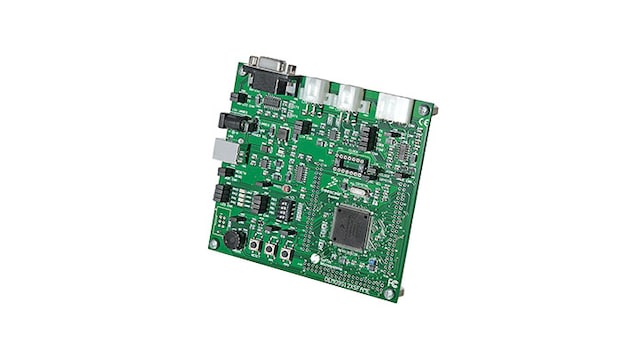

The DEMO9S12XSFAME Demo Board is a full-featured, ready to use evaluation system for the MC9S12XS128 microcontroller. DEMO9S12XSFAME takes advantage of CodeWarrior®TM (which groups an editor, assembler, c compiler and debugger) and NXP® USB-BDM interface, that allows the download and debug of the user application in the microcontroller's FLASH memory.
Write Code, Download, Evaluate. Yes, that simple!
Archived content is no longer updated and is made available for historical reference only.
