ColdFire MCF51CN128 Ethernet Tower System Module

TWR-MCF51CN Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

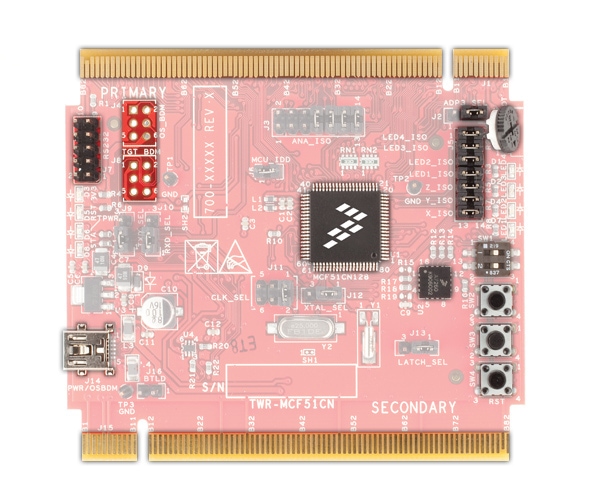

The TWR-MCF51CN module is a development board for the NXP® MCF51CN128 V1 ColdFire® Ethernet 32-bit MCUs.

  • Designed to enable the addition of Ethernet connectivity to industrial and commercial applications, while providing for minimized power consumption and increased functionality in low-power modes
  • Operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform

Product Details

Features

Microcontroller

    MCF51CN128 MCU

  • Fast Ethernet Controller (FEC)
  • Mini-FlexBus External Bus Interface
  • 10/100 Base-T Ethernet with DMA

Debug

  • Integrated, open source BDM

Size

  • Small form factor (59 mm x 90 mm) standard with Tower® System
