BGA30xx 1.2 GHz Optical Mini Node

OM7891 Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

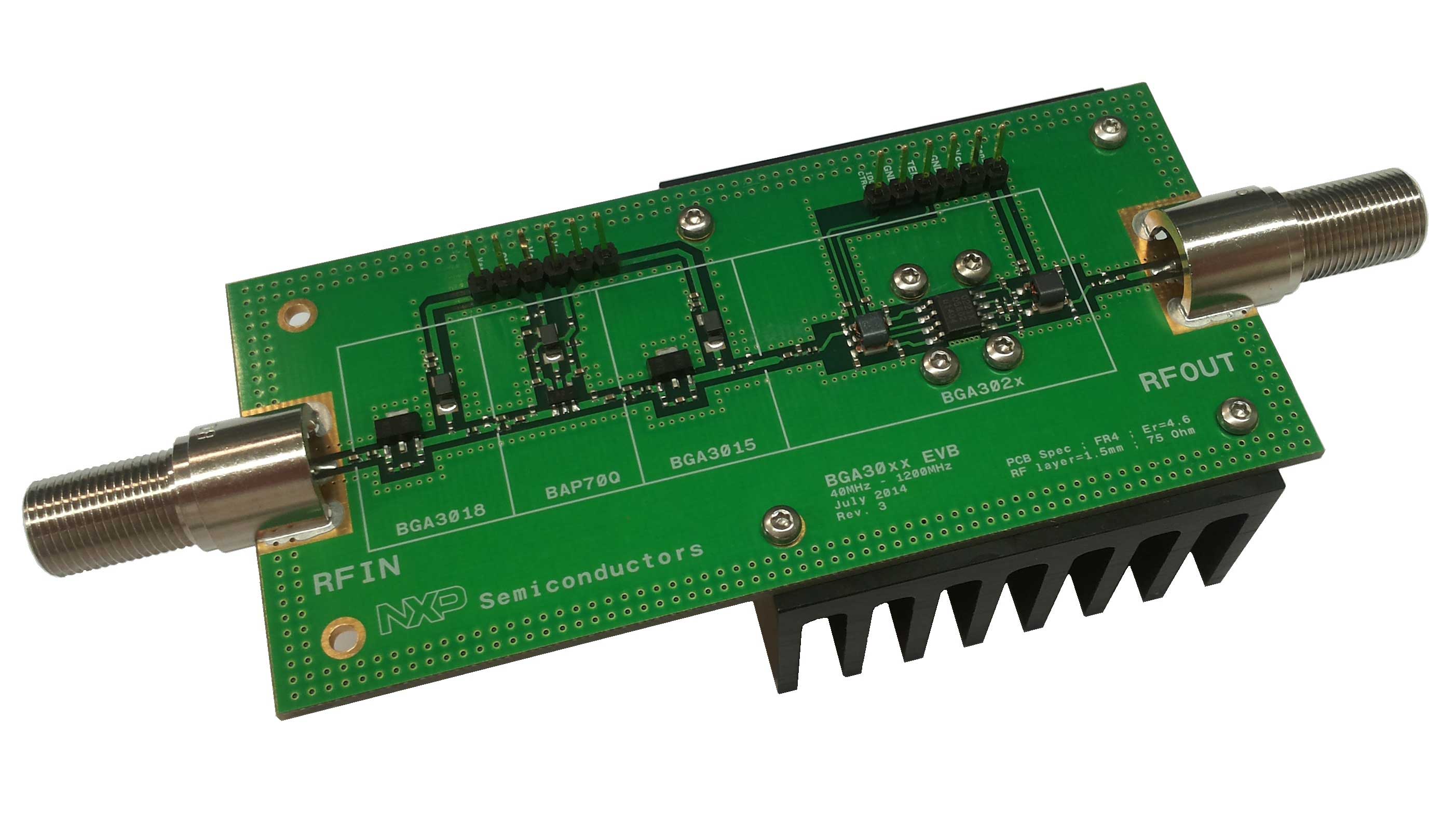

The BGA30xx Optical Mini Node kit enables the user to evaluate the BGA3018, BAP70Q, BGA3015, and BGA3022 in one system solution. It contains an RF board matched to 75 Ohms from 40 MHz up to 1200 MHz with F-connectors. The board operates between 5 V and 8 V.

Product Details

Features

  • Evaluation of electrical DC and RF performance like IDC, S-Parameters, Distortion levels, P-1dB, Noise Figure
  • PCB layout evaluation
  • S-parameters

Buy Options

OM7891-Image

Click to expand

  • OM7891
    Active

  • BGA30xx 1.2 GHz Optical Mini Node.
