ARM mbed LPC11U24 Board.
- No Longer Manufactured
- Arm mbed LPC11U24 Board

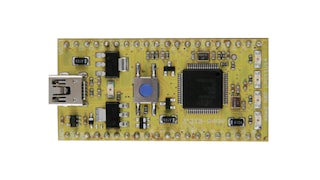

Arm mbed LPC11U24 Board
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
This board is no longer in production. The replacement for this board is the OM13058 (LPCXpresso11U68)
The mbed NXP® LPC11U24 Microcontroller in particular is designed for prototyping low cost USB devices, battery powered applications and 32-bit Arm® Cortex™-M0 based designs. It is packaged as a small DIP form-factor for prototyping with through-hole PCBs, stripboard and breadboard, and includes a built-in USB FLASH programmer.
The mbed Microcontrollers provide experienced embedded developers a powerful and productive platform for building proof-of-concepts. For developers new to 32-bit microcontrollers, mbed provides an accessible prototyping solution to get projects built with the backing of libraries, resources and support shared in the mbed community.
Product Details
Features
Microcontroller
- NXP® LPC11U24 MCU
- Low-power Arm® Cortex™-M0 Core
- 48 MHz, 8 KB RAM, 32 KB FLASH
Connectivity
- USB Device
- 2 x SPI
- I²C
- UART
- 6 x ADC
- GPIO

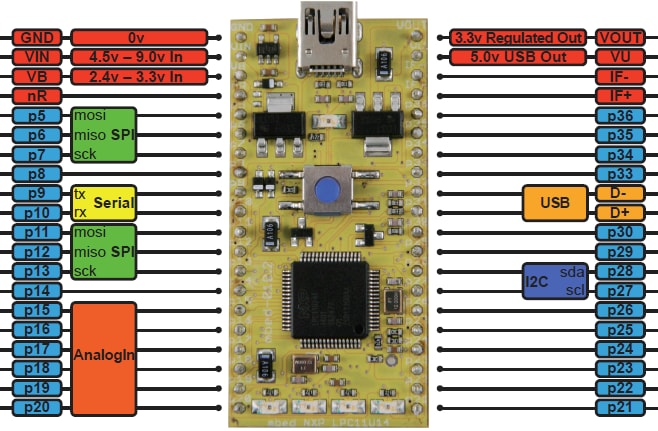

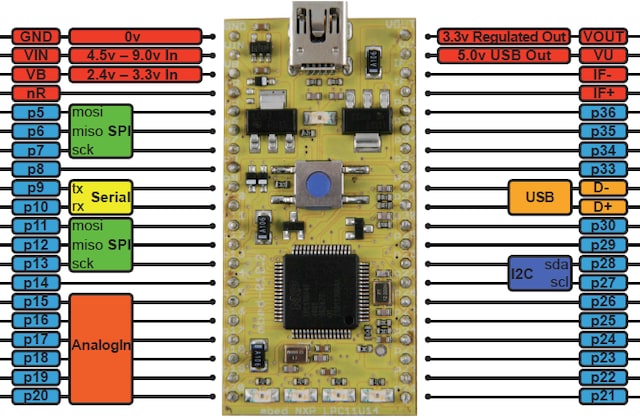

- 40-pin 0.1" pitch DIP package, 54 x 26 mm
Power Management
- 5 V USB
- 4.5 V - 9 V supply
- 2.4 V - 3.3 V battery
Size
- Prototyping form-factor
Support
- mbed.org Developer Website
- Lightweight Online Compiler
- High-level C/C++ SDK
- Cookbook of published libraries and projects
- Built-in USB drag 'n' drop FLASH programmer
