- No Longer Manufactured
- UDA1361TS
96 kHz sampling 24-bit stereo audio ADC
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

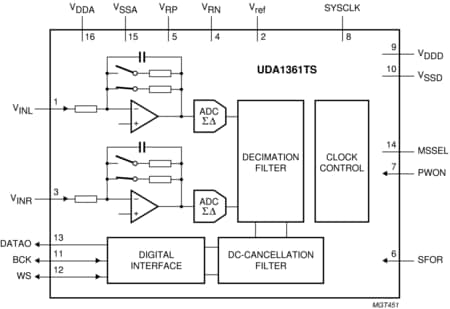

The UDA1361TS is a single chip stereo Analog-to-Digital Converter (ADC) employing bitstream conversion techniques. The low power consumption and low voltage requirements make the device eminently suitable for use in low-voltage low-power portable digital audio equipment that incorporates recording functions.
The UDA1361TS supports the I²S-bus data format and the MSB-justified data format with word lengths of up to 24 bits.
Documentation
Quick reference to our documentation types.
3 documents
-
Data Sheet
96 kHz sampling 24-bit stereo audio ADC
-
Package Information
plastic shrink small outline package; 16 leads; body width 4.4 mm
-
Supporting Information
Footprint for reflow soldering
