- MRF8S9202N
920-960 MHz, 58 W Avg., 28 V Single W-CDMA Lateral N-Channel RF Power MOSFET
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

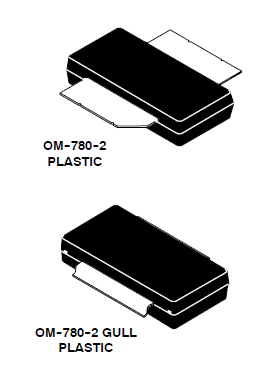

The MRF8S9202NR3 and MRF8S9202GNR3 are designed for CDMA base station applications with frequencies from 920 to 960 MHz. Can be used in Class AB and Class C for all typical cellular base station modulation formats.
Product Details
RF Performance Table
900 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ = 1300 mA, Pout = 58 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
| 920 MHz | 19.0 | 36.3 | 6.3 | –38.2 |
| 940 MHz | 19.1 | 37.2 | 6.2 | –38.0 |
| 960 MHz | 18.9 | 37.3 | 6.1 | –37.1 |
- Capable of Handling 7:1 VSWR, @ 32 Vdc, 920 MHz, 290 Watts CW Output Power (3 dB Input Overdrive from Rated Pout), Designed for Enhanced Ruggedness
- Typical Pout @ 1 dB Compression Point ≃ 200 Watts CW
