920-960 MHz, 56 W Avg., 28 V Airfast® RF Power LDMOS Transistors

AFT09H310-03S
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

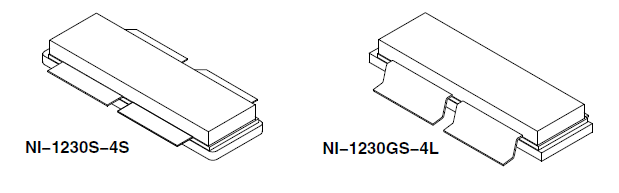

Roll over image to zoom in

The AFT09H310-03SR6 and AFT09H310-04GSR6 56 watt asymmetrical Doherty RF power LDMOS transistors are designed for cellular base station applications covering the frequency range of 920 to 960 MHz.

Product Details

Select a section:

RF Performance Table

900 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQA = 680 mA, VGSB = 0.4 Vdc, Pout = 56 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)
920 MHz17.947.48.2–28.5
940 MHz18.048.58.1–31.2
960 MHz18.247.37.9–35.0
