920-960 MHz, 56 W Avg., 28 V Airfast® RF Power LDMOS Transistor

AFT09S200W02S
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

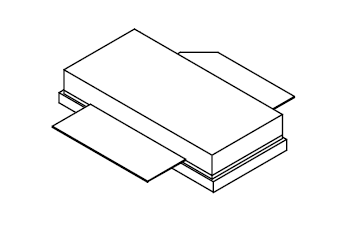

Roll over image to zoom in

The AFT09S200W02SR3 56 W RF power LDMOS transistor is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 920 to 960 MHz.

Product Details

Select a section:

RF Performance Table

900 MHz

Typical Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQ = 1400 mA, Pout = 56 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)		 IRL
(dB)
920 MHz19.634.16.9–35.2–28
940 MHz19.634.77.0–35.4–18
960 MHz19.435.66.8–34.7–12
