- No Longer Manufactured
- WLAN8101C
5 GHz Wi-Fi 6 Front-End Module
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

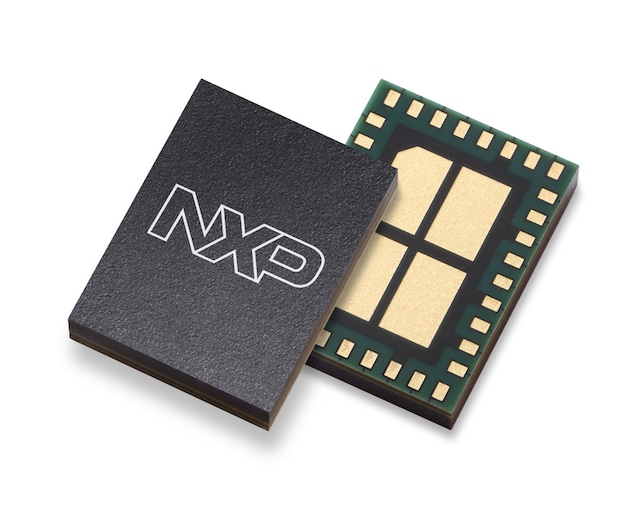

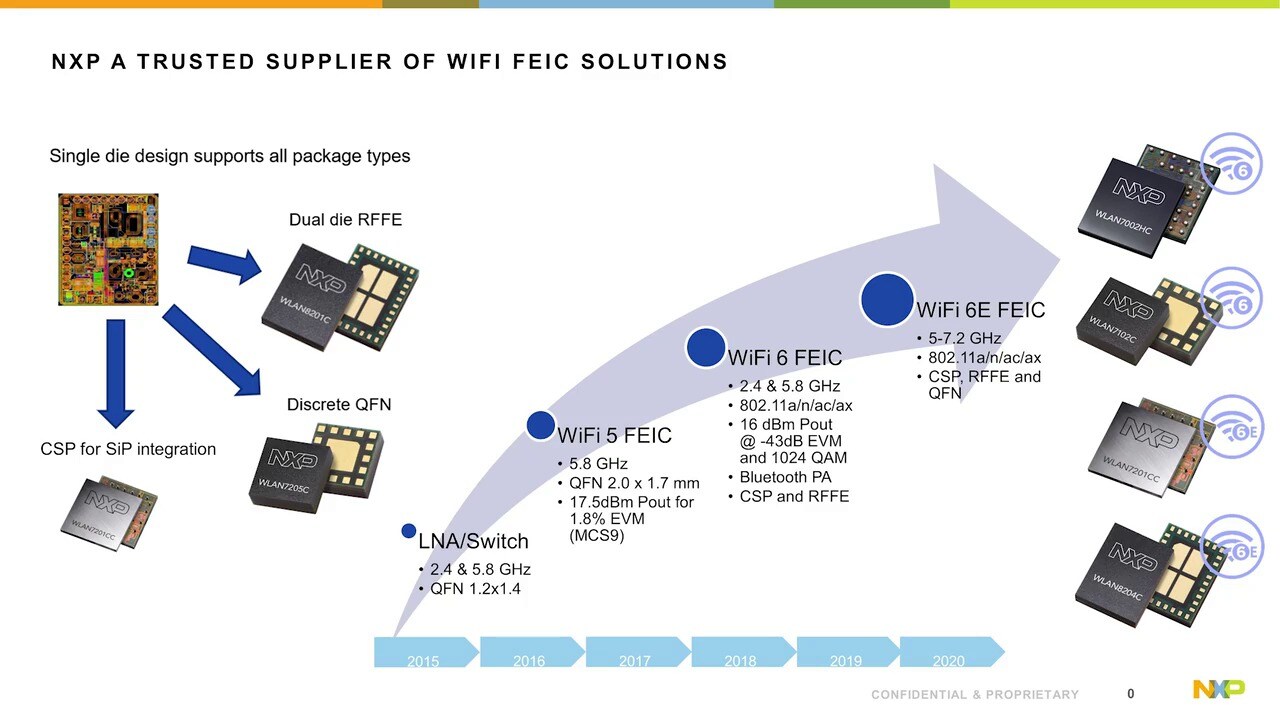

The WLAN8101C is a 5 GHz 2 x 2 MIMO RFFE for Wi-Fi 6 applications in a 3 mm x 4 mm package.
The WLAN8101C includes two monolithic front-end ICs. Each front-end IC has an integrated power amplifier, a low noise amplifier with bypass functionality and a single pole double throw (SPDT) switch.
WLAN8101C also includes coexistence filters for both transmit and receive channels.
The device is matched to 50 Ω and integrates harmonic and out of band filtering which minimizes the layout area in the application.
Product Details
Features
- Small-size 2 x 2 MIMO RFFE module for WiFi 6 applications
- Integrated power amplifiers with multiple operation modes for dynamic power efficiency and linearity control
- Full high band 5150 MHz to 5925 MHz
- 3 TX operation modes enabling flexibility for power efficiency adaptation
- Integrated low noise amplifiers supporting high gain and bypass modes
- Integrated SPDT switches for single antenna RX and TX operation
- Integrated directional couplers for precise transmit power control
- Requires no external matching components, DC free input/output ports.
- Integrated RF decoupling capacitors for all VCC and control pins
- Low profile, small-size 3 mm x 4 mm package
- Integrated ESD protection on all pins
- Human Body Model (HBM) according to ANSI/ESDA/JEDEC standard JS-001 exceeds 2 kV
- Charged Device Model (CDM) according to ANSI/ESDA/JEDEC standard JS-002 exceeds 500 V
- RoHS compliant
- Wi-Fi 6 support
- Smartphones, tablets, netbooks, and other portable computing devices
- Module applications for embedded systems
