470-1215 MHz, 90 W, 50 V Broadband RF Power LDMOS Transistors

MRF6V3090N
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

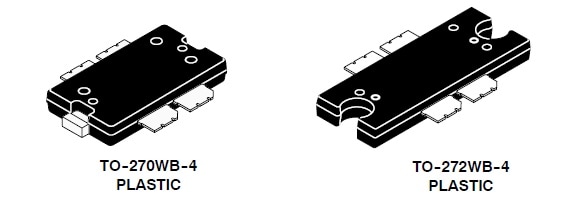

The MRF6V3090N and MRF6V3090NB are designed for broadcast and commercial aerospace broadband applications with frequencies from 470 to 1215 MHz.

Product Details

Select a section:

RF Performance Tables

470-860 MHz

Typical Performance (UHF 470-860 Reference Circuit): VDD = 50 Volts, IDQ = 450 mA, 64 QAM, Input Signal PAR = 9.5 dB @ 0.01% Probability on CCDF.
Signal Type Pout
(W)		 f
(MHz)		 Gps
(dB)		 ηD
(%)		 Output Signal PAR
(dB)		 IMD Shoulder
(dBc)
DVB-T (8k OFDM)18 Avg. 47021.626.88.6–31.8
65022.928.08.7–34.4
86021.928.37.9–29.2

960-1215 MHz

Typical Performance (L-band 960-1215 MHz Reference Circuit): VDD = 50 Volts, IDQ = 100 mA.
Signal Type Pout
(W)		 f
(MHz)		 Pin
(W)		 Gps
(dB)		 ηD
(%)
Pulse (128 µsec, 10% Duty Cycle)90 Peak 9601.318.455.3
10301.411856.9
10901.6517.450.7
12151.6817.351.0
