- No Longer Manufactured
- A3I35D012WN
3200-4000 MHz, 1.8 W Avg., 28 V Airfast®Wideband Integrated RF LDMOS Amplifier
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

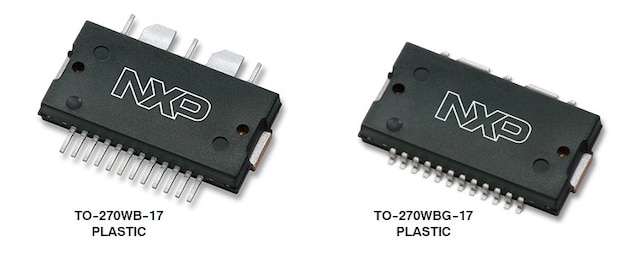

The A3I35D012WN wideband integrated circuit is designed for cellular base station applications requiring very wide instantaneous bandwidth capability. This circuit includes on-chip matching that makes it usable from 3200 to 4000 MHz. Its multi-stage structure is rated for 20 to 32 V operation and covers all typical cellular base station
modulation formats.
Product Details
RF Performance Table
3500 MHz
Typical Single-Carrier W-CDMA Characterization Performance: VDD = 28 Vdc, IDQ1(A+B) = 36 mA, IDQ2(A+B) = 138 mA, Pout = 1.8 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF. (1)| Frequency | Gps (dB) |
PAE (%) |
ACPR (dBc) |
| 3400 MHz | 28.3 | 16.5 | –45.2 |
| 3500 MHz | 28.0 | 17.3 | –45.1 |
| 3600 MHz | 27.9 | 17.8 | –44.8 |
| 3700 MHz | 27.8 | 17.8 | –44.5 |
| 3800 MHz | 27.8 | 17.5 | –44.7 |
