- No Longer Manufactured
- PCA1485U
32 kHz watch circuits with adaptive motor pulse
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

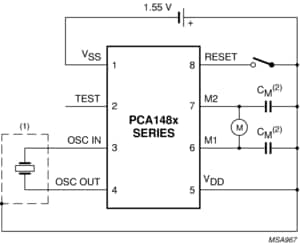

The PCA148x series devices are CMOS integrated circuits specially suited for battery-operated, quartz-crystal-controlled wrist-watches, with a bipolar stepping motor.
PCA1485U should not be used for new designs.
Product Details
Part numbers include: PCA1485U.
