- No Longer Manufactured
- MRF8S26060H
2620-2690 MHz, 15.5 W Avg., 28 V Single W-CDMA, LTE Lateral N-Channel RF Power MOSFETs
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

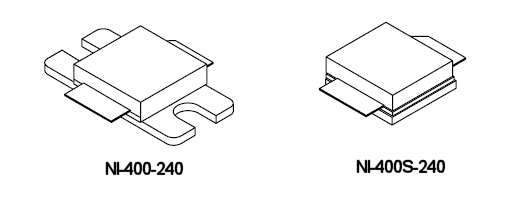

The MRF8S26060HR3 and MRF8S26060HSR3 are designed for W-CDMA and LTE base station applications with frequencies from 2620 to 2690 MHz. Can be used in Class AB and Class C for all typical cellular base station modulation formats.
Product Details
RF Performance Table
2620-2690 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ = 450 mA, Pout = 15.5 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
| 2620 MHz | 16.3 | 33.2 | 6.3 | –37.2 |
| 2655 MHz | 16.3 | 33.0 | 6.3 | –37.7 |
| 2690 MHz | 16.3 | 32.9 | 6.2 | –37.1 |
- Capable of Handling 10:1 VSWR, @ 32 Vdc, 2655 MHz, 78 Watts CW Output Power (3 dB Input Overdrive from Rated Pout)
- Typical Pout @ 1 dB Compression Point ≃ 60 Watts CW
1 documents
Data Sheet (1)
