- MMW9002KC
26.5-29.5 GHz 4-Channel Analog Beamforming Integrated Circuit
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

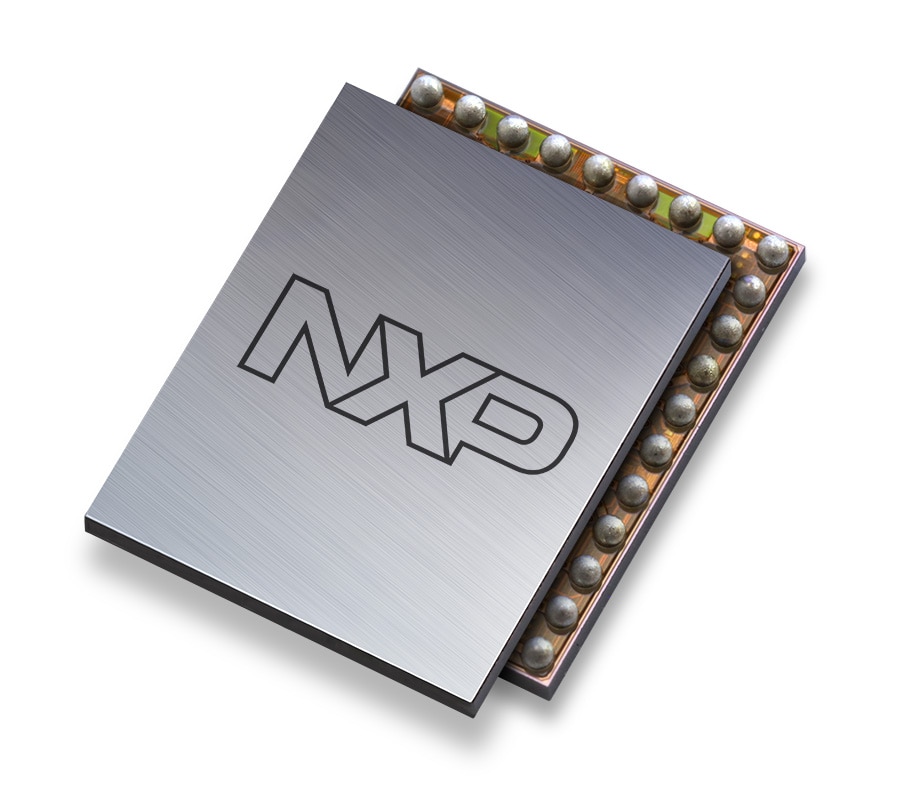

The MMW9002KC is a highly integrated 5G 4-channel bidirectional analog beamforming IC and is digitally controlled via a high-speed SPI bus. The MMW9002KC has a high bit phase and amplitude resolution. Each channel consists of a transmit chain (Tx) and a receive chain (Rx). Both Tx and Rx chains include a phase shifter and a variable gain amplifier (VGA). On-chip power detectors allow measurement of the power levels on all RF antenna pins. The SPI interface controls all device functional registers. The device comes in a very small 4.39 mm × 3.59 mm × 0.5 mm package with 56 bumps.
For additional information and sample availability contact your local NXP® Sales Office or NXP Authorized Distributor.
Product Details
Features
- 4-channel highly integrated analog beamforming IC
- Rx gain: 25 dB
- Tx gain: 30.5 dB
- Tx P1dB: 19 dBm
- Low EVM: < 1.5 % at 10 dB backoff with a 5G NAR 64 QAM signal
- Programmable via SPI interface
- Compact WLCSP leadless package: 4.39 mm × 3.59 mm × 0.5 mm
- RoHS compliant
- Wireless infrastructure
- 5G NR, RAN and CPE
- Phased array antenna (AESA)
- TDD systems
